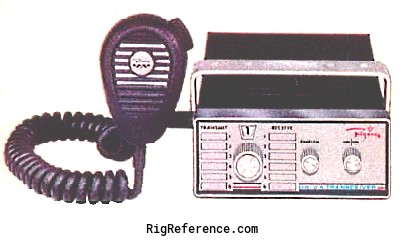

The Regency HR-2A is a 2 meter transceiver. It covers 144-148 MHz for both receive and transmit and has 2 crystals per channel for repeater offsets. The receiver system is double conversion superheterodyne with IF frequencies of 10.7 MHz / 455 kHz. RF output is 15 W. Power requirements are 13.6 V DC. Current drain is 180-800 mA during receive and 2.9 A during transmit. Dimensions are 140 × 64 × 190 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- Channelized
- Memories
- 6 channels in 1 bank(s)
Receiver
- RX-range
- 144-148 MHz
- Modulations
- FM
- Sensitivity
- 0.35 µV
- Selectivity
- 16 kHz @ -6 dB
32 kHz @ -50 dB - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 10.7 MHz / 455 kHz
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- 15 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.6 V DC
- Current drain RX
- 180-800 mA
- TX
- 2.9 A
Physical
- Dimensions (w×h×d)
- 64 × 140 × 190 mm (2.52 × 5.51 × 7.48 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 197x and 197x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5973
- MPN
- REGENCY-HR-000002A
Manuals, diagrams and brochures
- Regency HR-2A Instruction Manual PDF - 2.07 MB, submitted by Pancho Cheja
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Regency HR-2A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Regency HR-2A is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
