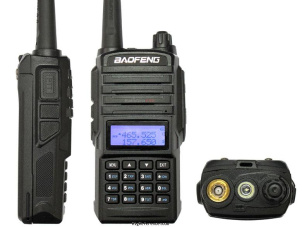

Baofeng UV-66 FM Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
65-108 / 136-174 / 400-520 MHz
TX-range
136-174 / 400-520 MHz
HAM bands
2m  70cm
Stability
-
Tuning steps
2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 kHz
Filters
2.5 / 5 kHz

Receiver

Modulations
FM   N-FM
Sensitivity
0.2 μ v (at 12 dB SINAD)
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
1W

Transmitter

Modulations
FM   N-FM
RF-Output
1 / 5 W

Connections

Antenna
SMA
Impedance
50Ω

Electrical

Power requirements
7.4 V DC Li-ion, 1800 mAh
Current drain RX
380 mA max
TX
-

Physical

Dimensions (w×h×d)
58 × 110 × 32 mm (2.28 × 4.33 × 1.26 in)
Weight
232 gr (8.2 oz) incl. antenna + battery
Form factor
Handheld
Manufactured
Between 2013 and 201x in China
MPN

Other features

Memories
128 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
LED Flashlight
CTCSS / DCS
DTMF
1750 Hz
Voice prompt
ANI code
PC programmable
Accessories
-
