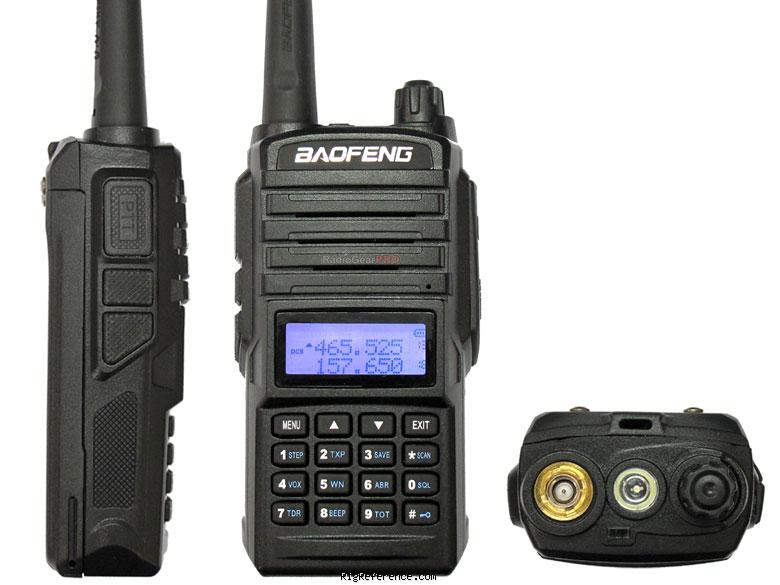

The Baofeng UV-66 is a handheld FM transceiver. It covers 65-108 / 136-174 / 400-520 MHz for reception and 136-174 / 400-520 MHz for transmission. Tuning steps are selectable from 2.5, 5, 6.25, 10, 12.5, 20 or 25 kHz. The UV-66 has a maximum RF output of 1 or 5 W and an audio output of 1W. It features 1 memory bank with 128 channels. The radio weighs 232 gr (incl. antenna + battery) and has dimensions of 110 × 58 × 32 mm. Additional features include LED Flashlight, CTCSS / DCS, DTMF, 1750 Hz, Voice prompt, ANI code and PC programmability.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 kHz
- Memories
- 128 channels in 1 bank(s)
Receiver
- RX-range
- 65-108 / 136-174 / 400-520 MHz
- Modulations
- FM N-FM
- Sensitivity
- 0.2 μ v (at 12 dB SINAD)
- Selectivity
- ?
- Filters
- 2.5 / 5 kHz
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1W
Transmitter
- TX-range
- 136-174 / 400-520 MHz
- Modulations
- FM N-FM
- RF-output
- 1 / 5 W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.4 V DC Li-ion, 1800 mAh
- Current drain RX
- 380 mA max
- TX
- ?
Physical
- Dimensions (w×h×d)
- 58 × 110 × 32 mm (2.28 × 4.33 × 1.26 in)
- Weight
- 232 gr (8.2 oz) incl. antenna + battery
- Form factor
- Handheld
- Manufactured
- Between 2013 and 201x in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- LED Flashlight
CTCSS / DCS
DTMF
1750 Hz
Voice prompt
ANI code
PC programmable - Accessories
- -
- RigReference ID
- 6030
- MPN
- BAOFENG-UV-000066
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Baofeng UV-66. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Baofeng UV-66 is around:
- USD 219 ~ USD 406
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
