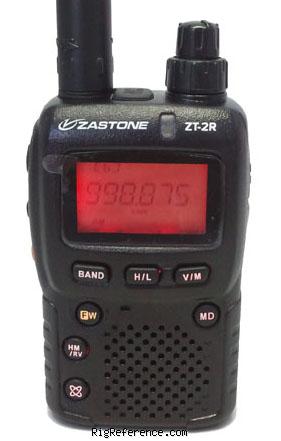

Zastone ZT-2R

Dual-band VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Zastone ZT-2R rigs and spare parts on eBay Find the Zastone ZT-2R on Amazon
We receive a small fee when you buy through these links, thank you!

The Zastone ZT-2R appears to be a 1-to-1 copy of the Yaesu VX-2R.

Frequency range

RX-range
0.54-30 / 30-79 / 76-108 / 108-137 / 137-174 / 174-222 / 222-470 / 470-800 / 800-999 MHz
TX-range
144-146 / 430-440 MHz
HAM bands
?
Stability
5 p.p.m.
Tuning steps
5 / 9 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
Filters
?

Receiver

Modulations
AM   N-FM   W-FM
Sensitivity
0.18 µV - 3 µV
Selectivity
12 kHz / 35 kHz
200 kHz / 300 kHz
Receiver system
Double / Triple conversion
IF-frequencies
47.25 MHz / 450 kHz
45.8 / 10.7 / 1 MHz
Image rejection
?
Audio output
100 mW max

Transmitter

Modulations
N-FM
RF-Output
1 / 1.5 / 2 / 3 W

Connections

Antenna
-
Impedance
50Ω

Electrical

Power requirements
3.7 V DC ± 15%, 1200 mA/h battery
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
81 × 47 × 23 mm (3.19 × 1.85 × 0.91 in)
Weight
?
Form factor
Handheld
Manufactured
Between 2013 and 20xx in China
MPN
ZASTONE-ZT-000002R

Other features

Memories
1300 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
