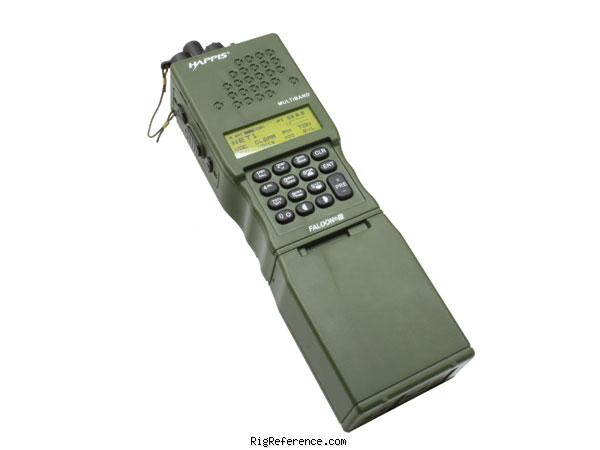

Harris AN/PRC-152

HF/VHF Tactical radio

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Harris AN/PRC-152 rigs and spare parts on eBay

Find the Harris AN/PRC-152 on Amazon

The Harris AN/PRC-152 is a HF/VHF tactical transceiver. It covers 30-512 MHz and optionally 762-870 MHz for both transmit and receive. Frequency stability is 2.5 p.p.m. RF output is 0.25-5 W, with a 10 W SATCOM burst mode. Audio output is 15 mW at 1000 ohm to external handset. The radio weighs 1.18 kg with batteries and measures 244 × 74 × 64 mm with battery and GPS. It is powered by a Li-ion battery.

General characteristics

HAM bands: ?
Frequency stability: 2.5 p.p.m.
Tuning steps: ?
Memories: ?

Receiver

RX-range: 30-512 MHz
762-870 MHz optional
Modulations: AM FM FSK PSK31/63
Sensitivity: SSB: –113 dBm (0.5 µv) minimum for 10 dB sinad
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ≥ 80 dB
Audio output: 15 mW at 1000 ohm to external handset

Transmitter

TX-range: 30-512 MHz
762-870 MHz optional
Modulations: AM FM FSK PSK31/63
RF-output: 0.25-5 W, 10 W SATCOM burst mode

Connections

Antenna: TNC
Impedance: 50Ω
Other: -

Electrical

Power requirements: Li-ion battery
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 74 × 244 × 64 mm (2.91 × 9.61 × 2.52 in) with battery and GPS
Weight: 1.18 kg (2.6 lbs) with batteries
Form factor: Handheld
Manufactured: Between 20xx and 20xx in USA

Other features

Usage: Military communication
Features + options: -
Accessories: -
RigReference ID: 6048
MPN: HARRIS-AN/PRC-000152
