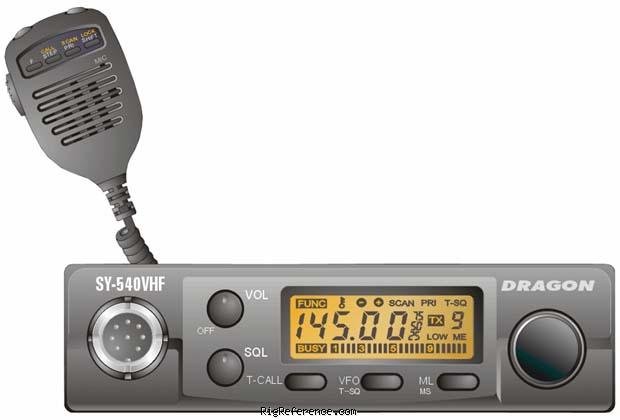

Dragon SY-540

General characteristics

HAM bands

2m

Frequency stability

?

Tuning steps

5 / 10 / 12.5 / 15 / 20 / 25 kHz

Memories

10 channels in 1 bank(s)

Receiver

RX-range

136-174 MHz

Modulations

FM

Sensitivity

0.18 µV (12 dB SINAD)

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

21.4 MHz / 455 kHz

Image rejection

?

Audio output

?

Transmitter

TX-range

144-146(148) MHz

Modulations

FM

RF-output

High: 25 W, Low: 1 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

200 mA

TX

4.5 A max

Physical

Dimensions (w×h×d)

130 × 35 × 125 mm (5.12 × 1.38 × 4.92 in)

Weight

500 gr (1.1 lbs)

Form factor

Mobile

Manufactured

Between 19xx and 19xx

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

6078

MPN

DRAGON-SY-000540

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Dragon SY-540. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Dragon SY-540 is around:

• USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
