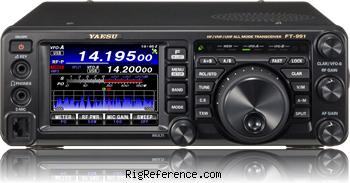

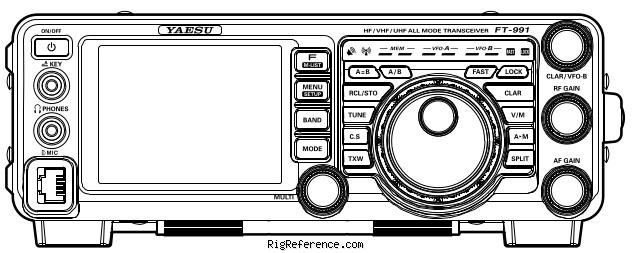

Yaesu FT-991 HF/VHF/UHF All Mode Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Frequency range

RX-range
0.3-56 / 118-164 / 420-470 MHz
TX-range
1.8-430 MHz (amateur bands only)
HAM bands
-
Stability
±0.5 p.p.m. (after 1 minute @+14 °F to +140 °F [–10 °C to +60 °C])
Tuning steps
5/10 Hz (SSB, CW), 50/100 Hz (AM, FM)
Filters
3 kHz (LSB/USB) 500 Hz (CW) 6 kHz (AM) 16 kHz (FM)

Receiver

Modulations
AM   FM   CW   USB   LSB   FSK   AFSK
Sensitivity
SSB/CW (10 dB S+N/N)
0.158 µV (1.8 - 30 MHz) (RF AMP 2 “ON”)
0.125 µV (50 - 54 MHz) (RF AMP 2 “ON”)
0.125 µV (144 - 146 MHz) (RF AMP 2 “ON”)
0.125 µV (430 - 440 MHz) (RF AMP 2 “ON”)
AM (10 dB S+N/N, 30 % modulation @400 Hz)
28 µV (0.1 - 1.8 MHz) (RF AMP 2 “ON”)
2 µV (1.8 - 30 MHz) (RF AMP 2 “ON”)
1 µV (50 - 54 MHz) (RF AMP 2 “ON”)
FM (12 dB SINAD)
0.5 µV (1.8 - 30 MHz) (RF AMP 2 “ON”)
0.25 µV (50 - 54 MHz) (RF AMP 2 “ON”)
0.18 µV (144 - 146 MHz) (RF AMP 2 “ON”)
0.18 µV (430 - 440 MHz) (RF AMP 2 “ON”)
Selectivity
Mode –6 dB / –60 dB
SSB/CW (Width=2.4 kHz) 2.4 kHz or better / 3.6 kHz or less
CW-N (Width =500 Hz) 0.5 kHz or better / 750 Hz or less
AM 6 kHz or better / 15 kHz or less
FM 12 kHz or better / 30 kHz or less
FM-N 9 kHz or better / 25 kHz or less
Receiver system
SSB/CW/AM: Tripe conversion FM: Double conversion
IF-frequencies
69.450 MHz
9.000 MHz (SSB, CW, AM)
24 kHz (SSB, CW, AM)
450 kHz (FM)
Image rejection
70 dB or better (1.8 MHz - 50 MHz Amateur bands) 60 dB or better (144/430 MHz Amateur band)
Audio output
2.5 W into 4 Ohms with 10% THD

Transmitter

Modulations
AM   FM   CW   USB   LSB   FSK   AFSK
RF-Output
HF: 5-100 W, VHF/UHF: 5-50 W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
13.8 V DC
Current drain RX
2.2 A max
TX
22 A max

Physical

Dimensions (w×h×d)
229 × 80 × 253 mm (9.02 × 3.15 × 9.96 in)
Weight
4.30 kg (9.5 lbs)
Form factor
Mobile
Manufactured
Between 2014 and 20xx
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other Yaesu documents.

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Yaesu FT-991. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Yaesu FT-991 might be around:

  • USD 860.00
Price Condition Year User
USD 875.00 Mint / New 2016 K9EQ
USD 875.00 Mint / New 2016 K9EQ
