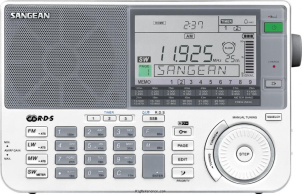

The Sangean ATS-909X is a handheld HF/VHF receiver. It covers 153-29999 kHz and 87.5-108 MHz with tuning steps of 0.04-100 kHz. The receiver system is dual conversion. Audio output is 1.5 W. It features 1 memory bank with 406 channels, a 9/10 kHz switch, alpha tagging, auto tuning system, RF gain control, FM RDS/RDBS and a 3.2 x 1.7" LCD screen. Dimensions are 133 × 200 × 38 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 0.04-100 kHz
- Memories
- 406 channels in 1 bank(s)
Receiver
- RX-range
- 153-29999 kHz / 87.5-108 MHz
- Modulations
- AM N-AM W-FM W-FM Stereo CW USB LSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Dual conversion
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1.5 W
Connections
- Antenna
- Built-in telescopic
- Impedance
- 50/75Ω
- Other
- -
Electrical
- Power requirements
- 4 x LR6/AA or 9 V DC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 200 × 133 × 38 mm (7.87 × 5.24 × 1.50 in)
- Weight
- 730 gr (1.6 lbs)
- Form factor
- Handheld
- Manufactured
- Between 2010 and 201x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 9 / 10 kHz switch
Alpha tagging
Auto Tuning System
RF Gain Control
FM RDS/RDBS
3.2 x 1.7" LCD screen
Aux Audio Input - Accessories
- -
- RigReference ID
- 6099
- MPN
- SANGEAN-ATS-000909X
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sangean ATS-909X. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Sangean ATS-909X in Good condition is around:
- USD 167
These estimates are based on the following prices:
