Kenwood TR-7010

VHF Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

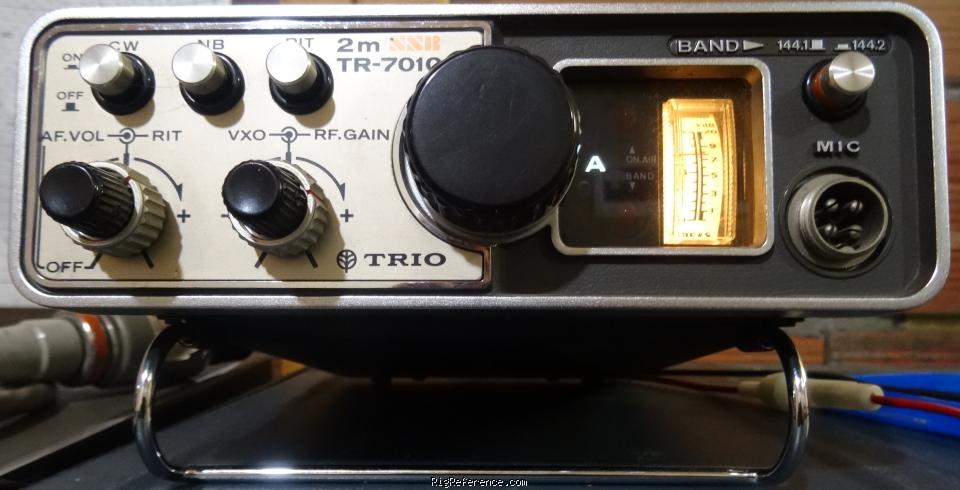

Front view (Courtesy of f1gxv) - Submitted by elmer

The Kenwood TR-7010 is a VHF transceiver. It covers 2m (144.0-145.0 MHz) for both receive and transmit. The RF output is 8 W. Audio output is 1.5 W @ 10% THD, 8 Ohm. It features 1 memory bank with 40 channels. Power requirements are 13.8V DC. Current drain in receive mode is 600 mA and 3 A in transmit mode. Dimensions are 60 × 180 × 240 mm.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 40 channels in 1 bank(s)

Receiver

RX-range: 2m (144.0-145.0 MHz)
Modulations: CW SSB
Sensitivity: 0.5 µV (S/N > 10 dB)
Selectivity: 2.4 kHz @ -6 dB
4.8 kHz @ -60 dB
Filters: ?
Receiver system: Single superheterodyne
IF-frequencies: 10.7 MHz
Image rejection: ≥ 60 dB
Audio output: 1.5 W @ 10% THD, 8 Ohm

Transmitter

TX-range: 2m (144.0-145.0 MHz)
Modulations: CW SSB
RF-output: 8 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 600 mA
TX: 3 A

Physical

Dimensions (w×h×d): 180 × 60 × 240 mm (7.09 × 2.36 × 9.45 in)
Weight: 2.70 kg (6.0 lbs)
Form factor: Mobile
Manufactured: Between 197x and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 6124
MPN: KENWOOD-TR-007010

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: TR-7010 PDF - 15.69 MB, submitted by Berend
