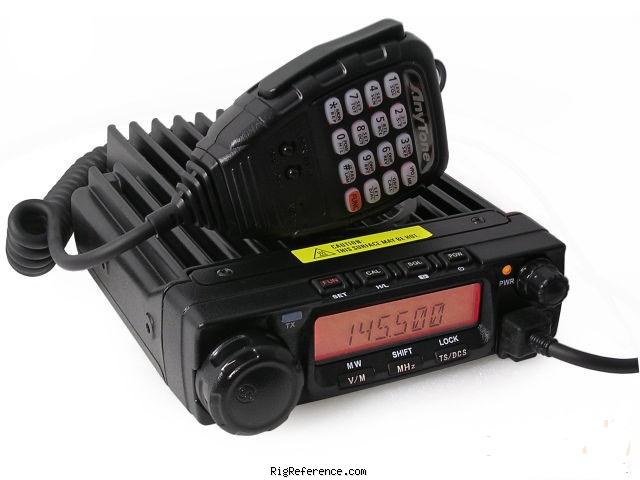

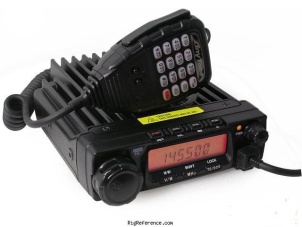

Anytone AT-588 VHF

Mobile VHF transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Anytone AT-588 VHF is a mobile VHF transceiver. It covers 134-174 MHz for both receive and transmit. Frequency stability is ±2.5 p.p.m. Tuning steps are selectable from 5 to 50 kHz. Image rejection is ≥60 dB. RF output is selectable at 10, 25 or 60 W. Audio output is 2 W. It features CTCSS/DCS and has 1 memory bank with 200 channels. Power requirements are 13.8 V DC (±15%). Current drain is 600 mA in receive and 9 A in transmit. Dimensions are 47 × 145 × 190 mm.

General characteristics

HAM bands: 2m
Frequency stability: ± 2.5 p.p.m.
Tuning steps: 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
Memories: 200 channels in 1 bank(s)

Receiver

RX-range: 134-174 MHz
Modulations: AM FM N-FM
Sensitivity: W-FM ≤ 0.25 μV (12 dB SINAD)
N-FM ≤ 0.35 μV (12 dB SINAD)
Selectivity: 12.5 / 25 kHz
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ≥ 60 dB
Audio output: 2 W @ 10% THD

Transmitter

TX-range: 134-174 MHz
Modulations: FM N-FM
RF-output: VHF: 10 / 25 / 60 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC (±15%)
Current drain RX: 600 mA
TX: 9 A

Physical

Dimensions (w×h×d): 145 × 47 × 190 mm (5.71 × 1.85 × 7.48 in)
Weight: 1.20 kg (2.6 lbs)
Form factor: Mobile
Manufactured: Between 201x and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: CTCSS / DCS
Accessories: -
RigReference ID: 6162
MPN: ANYTONE-AT-000588-VHF
