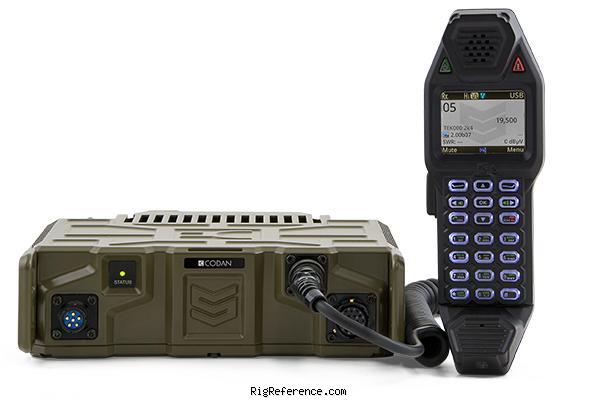

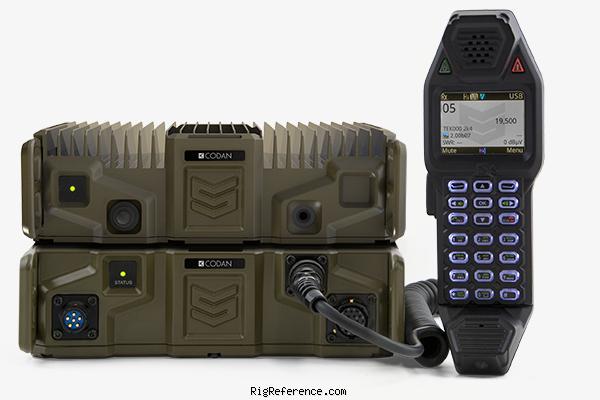

Codan Sentry-H

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m

Frequency stability

±0.3 p.p.m. from –30°C to +60°C

Tuning steps

?

Memories

1000 channels in 20 bank(s) @ 8 channels/second

Receiver

RX-range

0.250-30 MHz

Modulations

SSB

Sensitivity

SSB: -125 dBm (0.12 µV)

Selectivity

>65 dB at -1 kHz at -1 kHz +4 kHz SCF (USB)

Filters

500 Hz, 2.4 kHz, 2.75 kHz, 3 kHz (software defined)

Receiver system

SDR Processing Architecture

IF-frequencies

?

Image rejection

>90 dB

Audio output

4.0 W into 4 Ω (external H-250 interface) 0.5 W into 8 Ω (handset)

Transmitter

TX-range

1.6-30 MHz

Modulations

SSB

RF-output

150 W PEP — user programmable Hi, Med, Lo

Connections

Antenna

N-type

Impedance

50Ω

Other

-

Electrical

Power requirements

10 V to 35 V DC

Current drain RX

650 mA

TX

12 A max

Physical

Dimensions (w×h×d)

220 × 66 × 190 mm (8.66 × 2.60 × 7.48 in) RF-unit

Weight

3.10 kg (6.8 lbs) RF-unit + handset

Form factor

Mobile

Manufactured

Between 201x and 20xx in Australia

Other features

Usage

Commercial / Land mobile communication

Features + options

Up to 500 contact list entries
IP67 / MIL-STD-810G
GPS
Data + voice encryption

Accessories

-

RigReference ID

6164

MPN

CODAN-SENTRY-H
