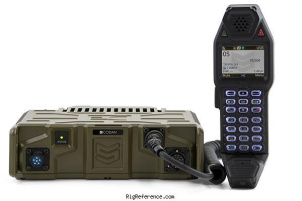

Codan Sentry-H Mobile HF transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Rugged HF-radio made for commercial and tactical (military) use.

Frequency range

RX-range
0.250-30 MHz
TX-range
1.6-30 MHz
HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Stability
±0.3 p.p.m. from –30°C to +60°C
Tuning steps
-
Filters
500 Hz, 2.4 kHz, 2.75 kHz, 3 kHz (software defined)

Receiver

Modulations
SSB
Sensitivity
SSB: -125 dBm (0.12 µV)
Selectivity
>65 dB at -1 kHz at -1 kHz +4 kHz SCF (USB)
Receiver system
SDR Processing Architecture
IF-frequencies
-
Image rejection
>90 dB
Audio output
4.0 W into 4 Ω (external H-250 interface) 0.5 W into 8 Ω (handset)

Transmitter

Modulations
SSB
RF-Output
150 W PEP — user programmable Hi, Med, Lo

Connections

Antenna
N-type
Impedance
50Ω

Electrical

Power requirements
10 V to 35 V DC
Current drain RX
650 mA
TX
12 A max

Physical

Dimensions (w×h×d)
220 × 66 × 190 mm (8.66 × 2.60 × 7.48 in) RF-unit
Weight
3.10 kg (6.8 lbs) RF-unit + handset
Form factor
Mobile
Manufactured
Between 201x and 20xx in Australia
MPN

Other features

Memories
1000 channels in 20 bank(s) @ 8 channels/second
Usage
Commercial / Land mobile communication
Features + options
Up to 500 contact list entries
IP67 / MIL-STD-810G
GPS
Data + voice encryption
Accessories
-
