Allied Radio Knight-Kit V44

Variable Frequency Oscillator

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

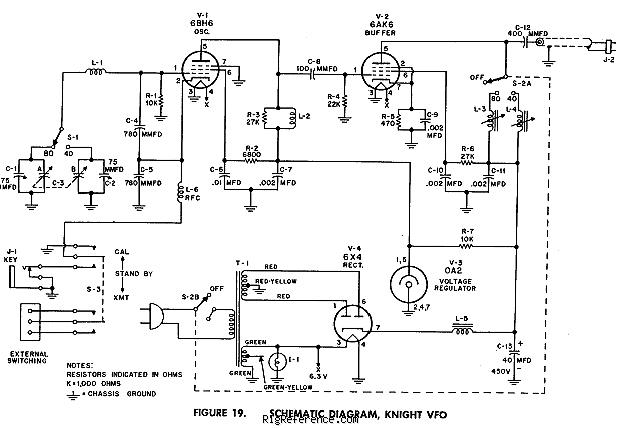

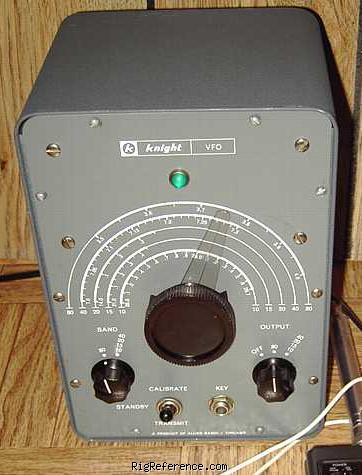

The Knight-Kit V44 VFO (Variable Frequency Oscillator) was a kit sold by Allied Radio. The catalog number was 83Y725. The copyright date in the manual is 1955. It uses a 6BH6 as series-tuned Clapp oscillator, 6AK6 as a buffer, 6X4 as rectifier and 0A2 voltage regulator. Unlike some competing models of the era such as the Heathkit VF-1, the Knight-kit has a built in power supply. The supply is mounted above the oscillator components to limit convection heat. The VFO specifies an RF output of approximately 10 volts.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?

Frequency range

Range
10-80 m

Connections

Antenna
-
Impedance
?
Other
-

Electrical

Power requirements
Mains, built-in PSU
Current drain RX
-
TX
?

Physical

Manufactured
Between 1955 and 195x in USA
Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
MPN
ALLIED-RADIO-KNIGHT-KIT-V000044
