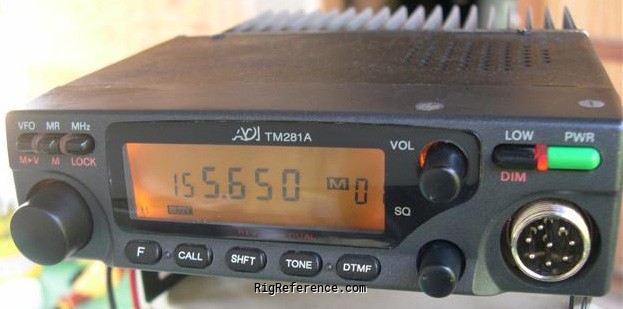

The ADI TM-281A is a Mobile 2m transceiver. It covers 144-148 MHz for both transmit and receive. The receiver system is a Double conversion superheterodyne with IF frequencies of 1st: 10.7 MHz and 2nd: 455 kHz. RF output is 60/25/7 W. It features CTCSS / DCS and has 1 memory bank with 81 channels. The power requirements are 11-15.8 V DC. Current drain is 600 mA in receive mode and 12 A max in transmit mode. Dimensions are 40 × 140 × 166 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 81 channels in 1 bank(s)
Receiver
- RX-range
- 144-148 MHz
- Modulations
- FM
- Sensitivity
- 0.18 µV (12 dB SINAD)
- Selectivity
- 70 dB
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 10.7 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- 60/25/7 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 11-15.8 V DC
- Current drain RX
- 600 mA
- TX
- 12 A max
Physical
- Dimensions (w×h×d)
- 140 × 40 × 166 mm (5.51 × 1.57 × 6.54 in)
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 199x and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS / DCS
- Accessories
- -
- RigReference ID
- 6177
- MPN
- ADI-TM-000281A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ADI TM-281A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ADI TM-281A is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
