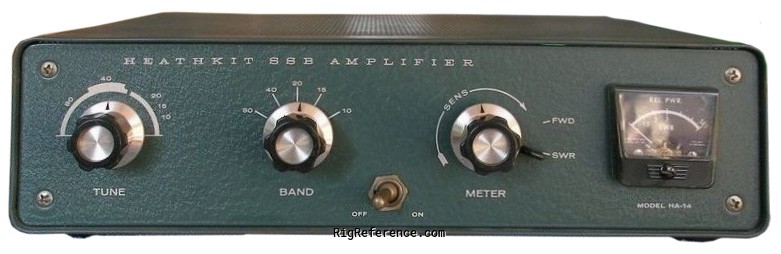

Derived from the Heathkit SB-200, this compact amplifier delivers up to 1.000 watts. It's basically Heathkit SB-200 separated into 2 boxes - the control unit and the power supply. Driving power is 100 W.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Transmitter
- TX-range
- 10-80m
- Modulations
- SSB
- RF-output
- 1 kW PEP
Connections
- Antenna
- SO-239
- Impedance
- 50/75Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 310 × 80 × 254 mm (12.20 × 3.15 × 10.00 in)
- Weight
- 3.20 kg (7.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1965 and 19xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6188
- MPN
- HEATHKIT-HA-000014
Manuals, diagrams and brochures
-
No documents available for this particular model.
