Heathkit HD-1422

Antenna Noise Bridge

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Heathkit HD-1422 rigs and spare parts on eBay

Find the Heathkit HD-1422 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

The Heathkit HD-1422 is an antenna noise bridge. It is used to determine how well an antenna is matched to a transmitter. The instrument works by generating a tone-modulated broadband noise signal and coupling it to an impedance bridge. Using a receiver as an indicator, the impedance bridge measures the resistive and reactive components of the antenna.

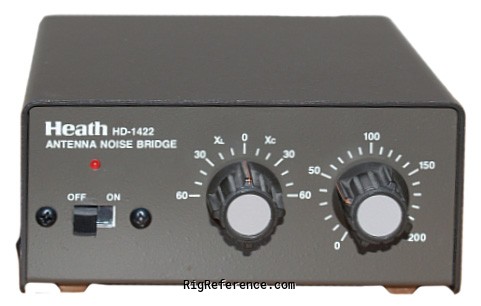

Front Panel Range: Resistance: 0 - 200 ohms; Capacitance: +/- 60 pF

General characteristics

HAM bands: 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Connections

Antenna: SO-239
Impedance: ?
Other: -

Electrical

Power requirements: Internal 9 V battery or external 9-11 V DC
Current drain RX: 45 mA
TX: ?

Physical

Dimensions (w×h×d): 130 × 57 × 127 mm (5.12 × 2.24 × 5.00 in)
Weight: ?
Form factor: Base Station
Manufactured: Between 1975 and 197x in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 6198
MPN: HEATHKIT-HD-001422

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Heathkit HD-1422 Antenna Noise Bridge Manual PDF - 12.24 MB, submitted by Christopher Prioli
