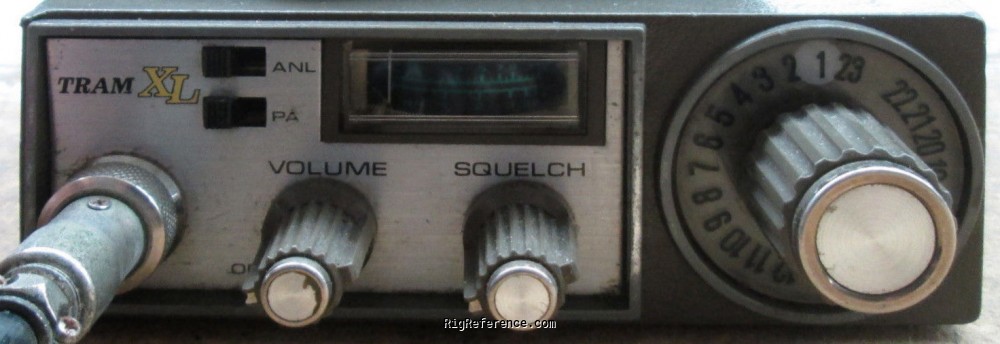

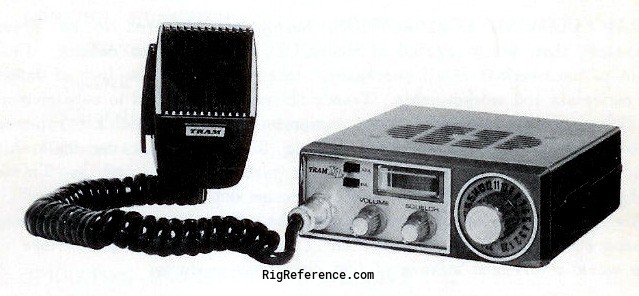

Tram XL

General characteristics

HAM bands

11m (CB)

Frequency stability

0.005%

Tuning steps

Channelized

Memories

23 channels in 1 bank(s)

Receiver

RX-range

26.965-27.255 MHz

Modulations

AM

Sensitivity

0.6 µV for 10 dB S+N/N

Selectivity

4 kHz @ -6 dB, 20 kHz @ -60 dB

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 7.8 MHz
2nd: 455 kHz

Image rejection

≥ 50 dB

Audio output

3 W @ 10% THD

Transmitter

TX-range

26.965-27.255 MHz

Modulations

AM

RF-output

4 W

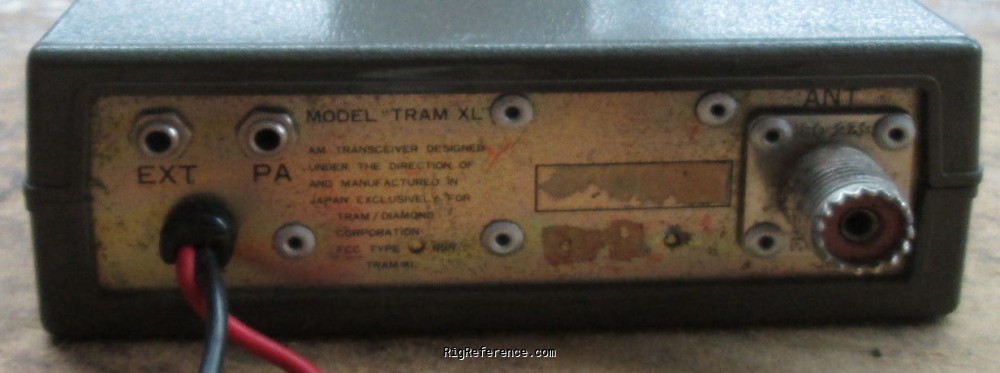

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC

Current drain RX

0.3-1.3 A

TX

1.8 A

Physical

Dimensions (w×h×d)

140 × 50 × 160 mm (5.51 × 1.97 × 6.30 in)

Weight

1.15 kg (2.5 lbs)

Form factor

Mobile

Manufactured

Between 1975 and 197x in USA

Other features

Usage

Citizen Band (27Mc)

Features + options

ANL

Accessories

-

RigReference ID

6268

MPN

TRAM-XL
