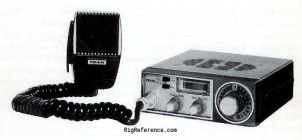

The Tram XL is a compact mobile transceiver designed to provide 23 channels AM operation in the class "D" citizen's band service.

General characteristics

HAM bands
11m (CB)
Frequency stability
0.005%
Tuning steps
Channelized
Memories
23 channels in 1 bank(s)

Receiver

RX-range
26.965-27.255 MHz
Modulations
AM
Sensitivity
0.6 µV for 10 dB S+N/N
Selectivity
4 kHz @ -6 dB, 20 kHz @ -60 dB
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 7.8 MHz
2nd: 455 kHz
Image rejection
≥ 50 dB
Audio output
3 W @ 10% THD

Transmitter

TX-range
26.965-27.255 MHz
Modulations
AM
RF-output
4 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
0.3-1.3 A
TX
1.8 A

Physical

Dimensions (w×h×d)
140 × 50 × 160 mm (5.51 × 1.97 × 6.30 in)
Weight
1.15 kg (2.5 lbs)
Form factor
Mobile
Manufactured
Between 1975 and 197x in USA

Other features

Usage
Citizen Band (27Mc)
Features + options
ANL
Accessories
-
RigReference ID
6268
MPN
TRAM-XL
