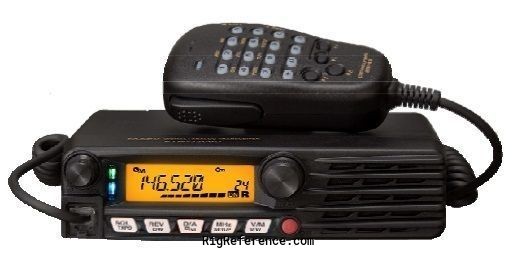

US version of the Yaesu FTM-3200DE.

General characteristics

HAM bands
2m
Frequency stability
?
Tuning steps
5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
Memories
220 channels in 1 bank(s)

Receiver

RX-range
136-174 MHz
Modulations
AM   FM   N-FM   C4FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 47.25 MHz
2nd: 450 kHz
Image rejection
?
Audio output
3 W

Transmitter

TX-range
144-148 MHz
Modulations
FM   N-FM   C4FM
RF-output
65 / 30 / 5 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
11.7-15.8 V DC
Current drain RX
0.5 A
TX
12 A max

Physical

Dimensions (w×h×d)
154 × 43 × 155 mm (6.06 × 1.69 × 6.10 in)
Weight
1.30 kg (2.9 lbs)
Form factor
Mobile
Manufactured
Between 2016 and 201x

Other features

Usage
Amateur / Ham radio operators
Features + options
- 65W of Solid RF Power within a Compact Footprint
- Modulation Modes: C4FM Digital (V/D Mode, VFR Mode*, DFR Mode), FM Analog
- AMS (Automatic Mode Select) Function Automatically Recognizes the Signal as C4FM Digital or Conventional FM
- Loud and Crystal Clear Front Panel Speaker with 3W of Audio Output
- Digital GM (Group Monitor) Function
- Bright Multi-Colored LED Mode/Status Indicator Vibrantly Shows the Transceivers' Status
- Illuminated Microphone with Direct Frequency Entry
- 220 Memo
Accessories
Not compatible with HRI-200 (Wires-X)
RigReference ID
6290
MPN
YAESU-FTM-003200DR

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTM-3200DR. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FTM-3200DR is around:

  • USD 99.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 100.00 Used / Good Jim M.
