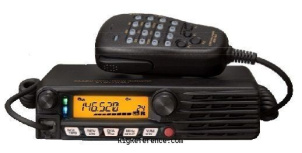

Yaesu FTM-3200DR

General characteristics

HAM bands

2m

Frequency stability

?

Tuning steps

5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz

Memories

220 channels in 1 bank(s)

Receiver

RX-range

136-174 MHz

Modulations

AM   FM   N-FM   C4FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 47.25 MHz
2nd: 450 kHz

Image rejection

?

Audio output

3 W

Transmitter

TX-range

144-148 MHz

Modulations

FM   N-FM   C4FM

RF-output

65 / 30 / 5 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

11.7-15.8 V DC

Current drain RX

0.5 A

TX

12 A max

Physical

Dimensions (w×h×d)

154 × 43 × 155 mm (6.06 × 1.69 × 6.10 in)

Weight

1.30 kg (2.9 lbs)

Form factor

Mobile

Manufactured

Between 2016 and 201x

Other features

Usage

Amateur / Ham radio operators

Features + options

- 65W of Solid RF Power within a Compact Footprint
- Modulation Modes: C4FM Digital (V/D Mode, VFR Mode*, DFR Mode), FM Analog
- AMS (Automatic Mode Select) Function Automatically Recognizes the Signal as C4FM Digital or Conventional FM
- Loud and Crystal Clear Front Panel Speaker with 3W of Audio Output
- Digital GM (Group Monitor) Function
- Bright Multi-Colored LED Mode/Status Indicator Vibrantly Shows the Transceivers' Status
- Illuminated Microphone with Direct Frequency Entry
- 220 Memo

Accessories

Not compatible with HRI-200 (Wires-X)

RigReference ID

6290

MPN

YAESU-FTM-003200DR

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTM-3200DR. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Yaesu FTM-3200DR in Good condition is around:

• USD 100

Price History Chart

These estimates are based on the following prices:
