Midland 75-822

Handheld CB Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

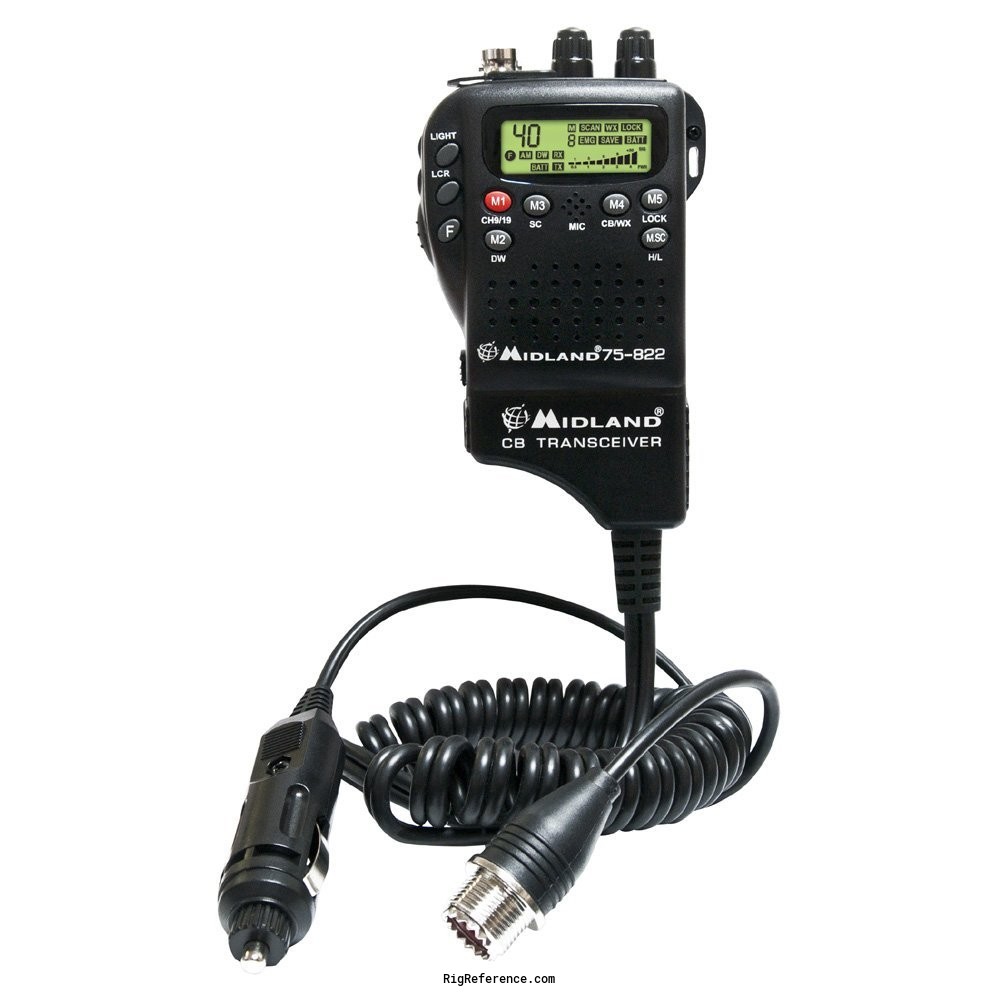

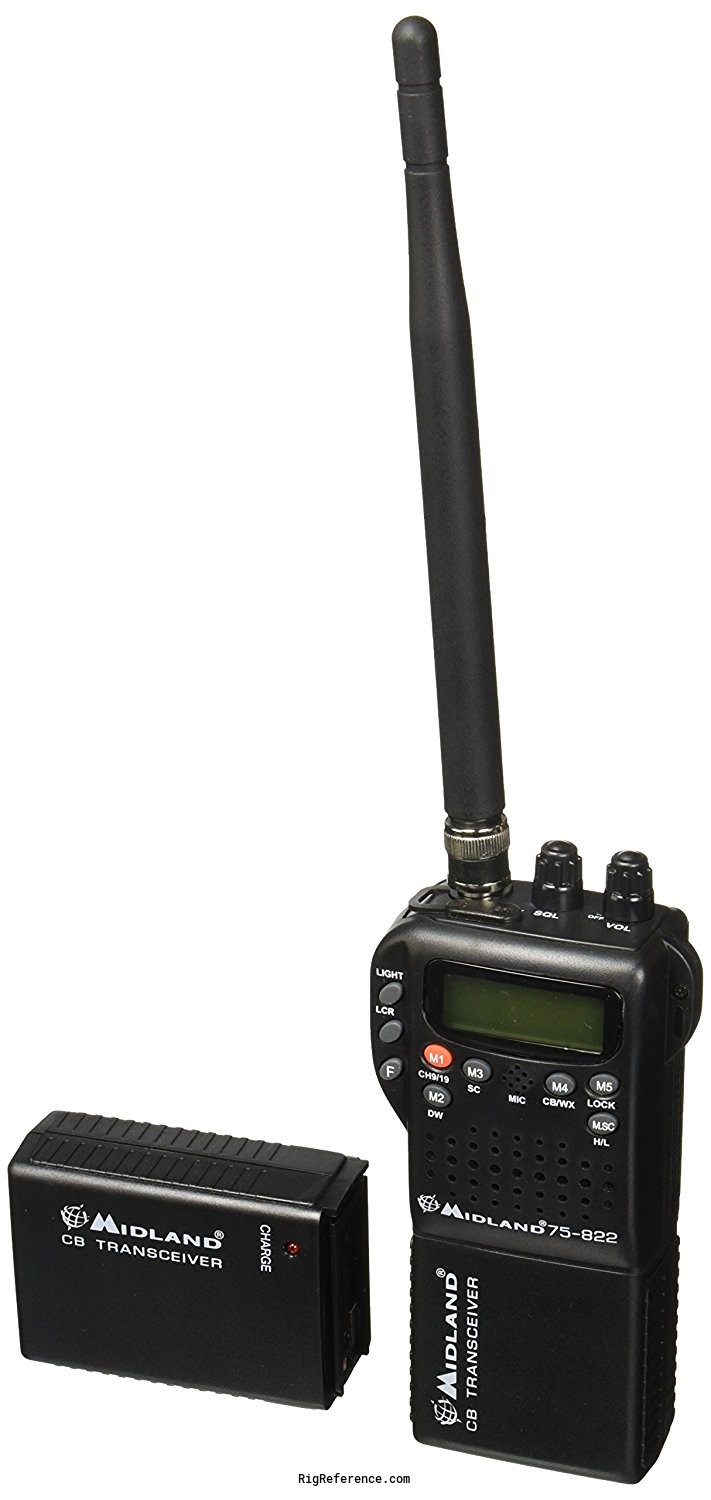

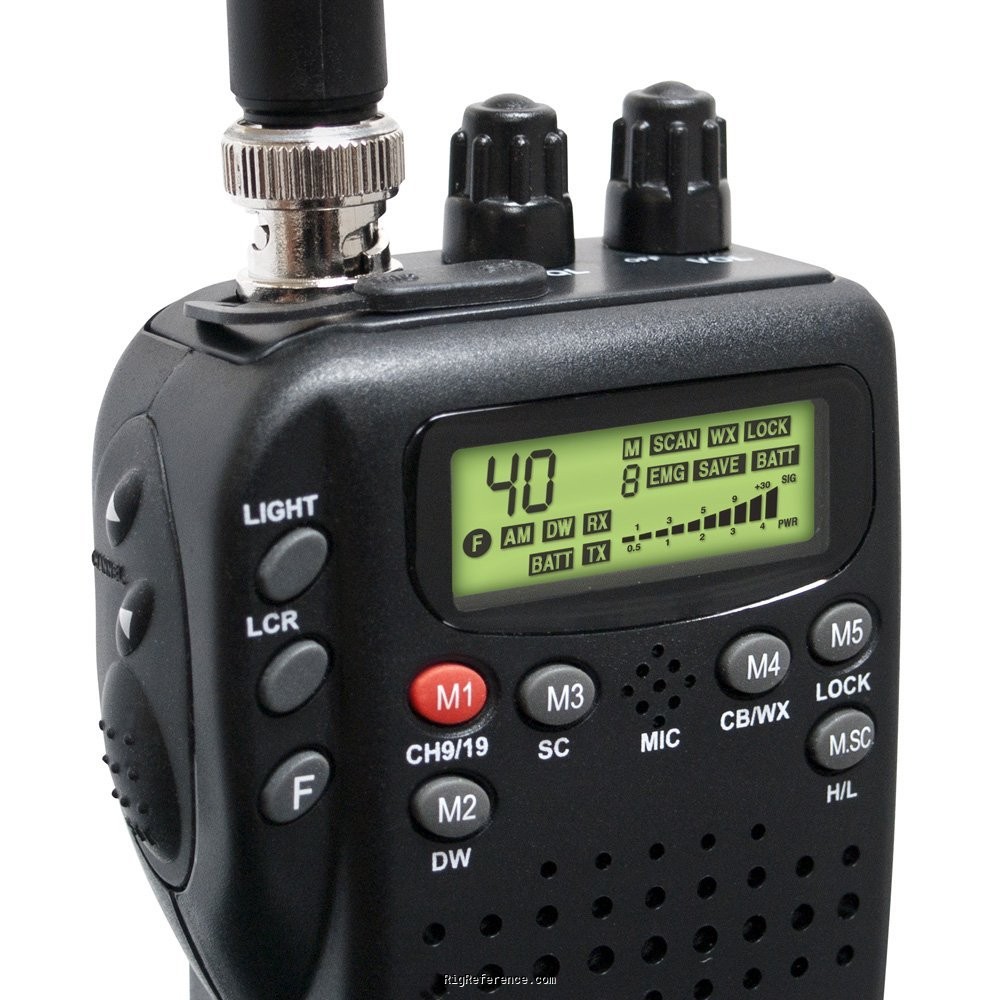

The Midland 75-822 is a handheld transceiver. The frequency range is CB-band supporting AM modulation only. Maximum RF-output is 4 W. The radio features 1 memory bank with 40 channels. It operates on the CB band. Dimensions are 66 × 239 × 170 mm.

General characteristics

HAM bands: 11m (CB)
Frequency stability: ?
Tuning steps: Channelized
Memories: 40 channels in 1 bank(s)

Receiver

RX-range: CB-band
Modulations: AM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: CB-band
Modulations: AM
RF-output: 4 W

Connections

Antenna: BNC
Impedance: 50Ω
Other: -

Electrical

Power requirements: 6 × AA cells
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 239 × 66 × 170 mm (9.41 × 2.60 × 6.69 in)
Weight: 181 gr (6.4 oz)
Form factor: Handheld
Manufactured: Between 2012 and 201x

Other features

Usage: Citizen Band (27Mc)
Features + options: NOAA weather monitoring
Dual watch
Accessories: -
RigReference ID: 6293
MPN: MIDLAND-000075-822

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Midland 75-822. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Midland 75-822 is around:

USD 207 ~ USD 384

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by

Login or Register to submit prices
