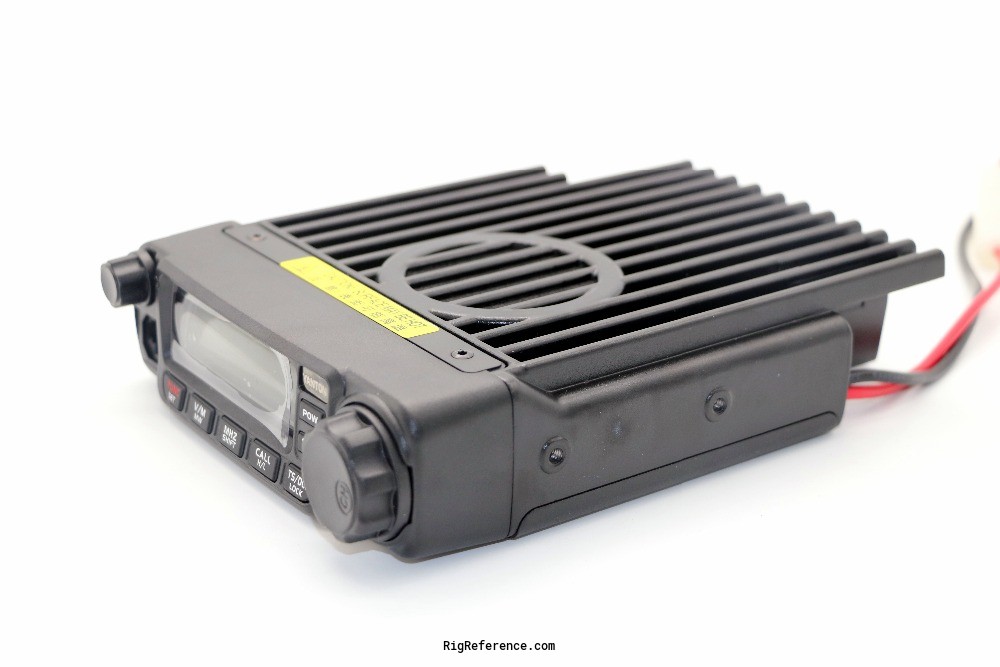

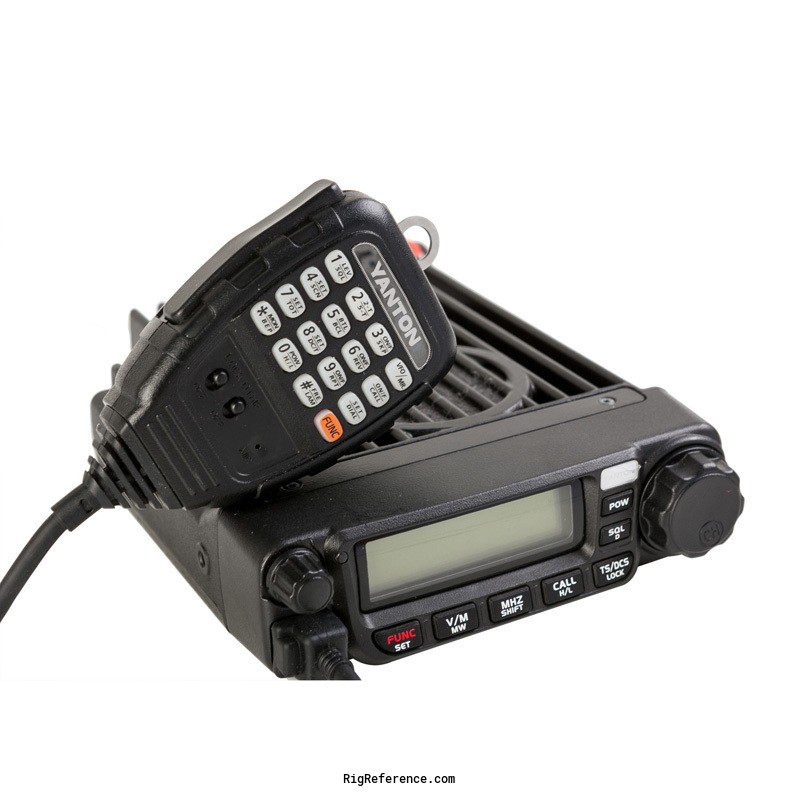

Yanton TM-8600

Mobile 2m / 222MHz / 70cm Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Yanton TM-8600 is a Mobile transceiver covering 136-174 / 245-246 / 400-490 MHz. It has a frequency stability of ± 2.5 p.p.m. and filters of 12.5 / 25 kHz. The RF output is 3 W, with an audio output of 500 mW. It features 2 memory banks with 256 channels total. Additional features include Emergency alert, FM radio with 25 stations memory, CTCSS/DCS scanning and PC-programmability. Dimensions are 190 × 145 × 47 mm. The TM-8600 weighs 1.2 kg and requires 13.8 V DC ±15%.

General characteristics

HAM bands: 2m 1.25m 70cm
Frequency stability: ± 2.5 p.p.m.
Tuning steps: ?
Memories: 256 channels in 2 bank(s)

Receiver

RX-range: 136-174 / 245-246 / 400-490 MHz
Modulations: FM N-FM
Sensitivity: ≤ 0.20 µV (12 dB SINAD)
Selectivity: ?
Filters: 12.5 / 25 kHz
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 500 mW

Transmitter

TX-range: 136-174 / 245-246 / 400-490 MHz
Modulations: FM N-FM
RF-output: 3 W

Connections

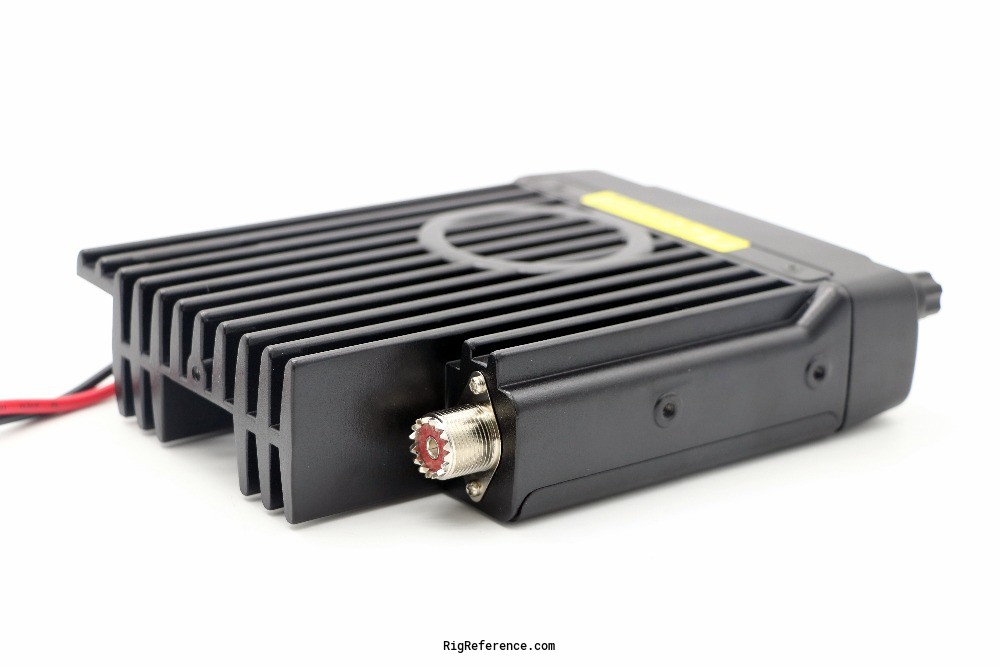

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC ±15%
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 145 × 190 × 47 mm (5.71 × 7.48 × 1.85 in)
Weight: 1.20 kg (2.6 lbs)
Form factor: Mobile
Manufactured: Between 2017 and 201x in China

Other features

Usage: Amateur / Ham radio operators
Features + options: Emergency alert
FM radio with 25 stations memory
CTCSS/DCS scanning
PC-programmable
Accessories: -
RigReference ID: 6340
MPN: YANTON-TM-008600
