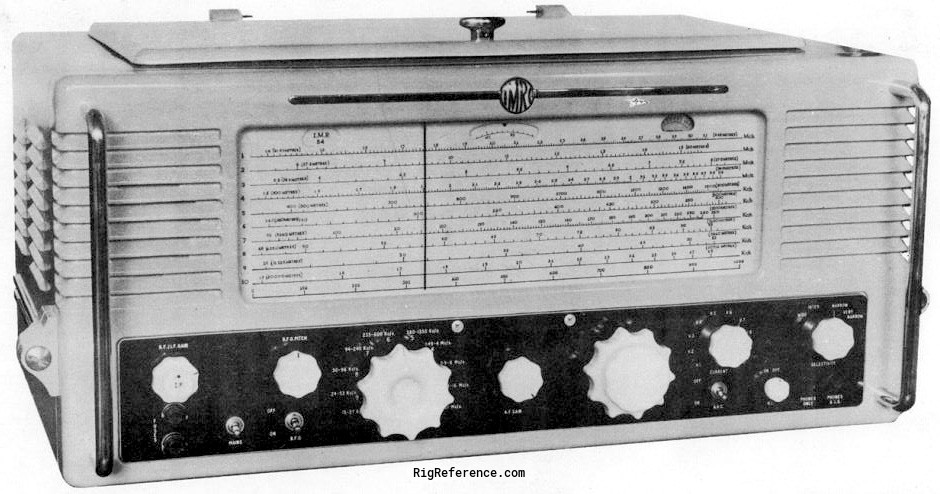

This set was designed for the UK military and is also known as the International Marine Radio 54 or IMR.54. The IMR.54 receiver is a high class marine communication receiver covering the requirements of a long-wave, medium-wave and short-wave main receiver in all compulsorily equipped ships.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 15 kHz - 31 MHz in 10 bands
- Modulations
- AM CW
- Sensitivity
- 15-160 kHz: 4-20 µV (10 dB S/N)
160-1500 kHz: 6-10 µV (10 dB S/N)
1.5-4 MHz: 1.5-3 µV (10 dB S/N)
4-10 MHz: 2-6 µV (10 dB S/N)
10-31 MHz: 2-10 µV (10 dB S/N) - Selectivity
- Wide, Intermediate, Narrow and Very narrow settings.
500 Hz ... 25 kHz - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1 W
Connections
- Antenna
- -
- Impedance
- 72Ω
- Other
- -
Electrical
- Power requirements
- Mains (110-250 V AC)
- Current drain RX
- 82 W
- TX
- -
Physical
- Dimensions (w×h×d)
- 747 × 385 × 451 mm (29.41 × 15.16 × 17.76 in)
- Weight
- 60.90 kg (134.4 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1952 and 195x in Great Britain
Other features
- Usage
- Marine / Navy
- Features + options
- Automatic volume control
- Accessories
- -
- RigReference ID
- 6350
- MPN
- EDDYSTONE-000700
Manuals, diagrams and brochures
- International Marine Radio IMR54 Instruction Manual PDF - 28.03 MB, submitted by RigReference
- IMR54 Alternative service manual PDF - 14.67 MB, submitted by RigReference
- IMR54 Circuit Diagram PDF - 2.62 MB, submitted by RigReference
- IMR54 Parts List PDF - 14.29 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Eddystone 700. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Receiver equipment, the estimated value of the Eddystone 700 is around:
- USD 159 ~ USD 295
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
