Eddystone 720

Marine Shortwave receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

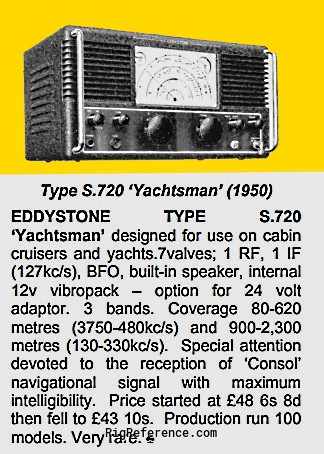

Eddystone 720 (Yachtman 1950) - Submitted by Pancho Cheja

This set was designed for use in cabin cruisers and yachts. Receives AM-only and runs from a 12 V DC power source, The set has an integrated vibro-pack to generate the high voltages required for the valves. There was an optional 24 V DC kit available.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 130-3750 kHz in 3 bands
Modulations: AM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: Superheterodyne
IF-frequencies: 127 kHz
Image rejection: ?
Audio output: 1 W

Connections

Antenna: -
Impedance: 70Ω
Other: -

Electrical

Power requirements: 12 V DC, 24 V DC optional
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 425 × 222 × 254 mm (16.73 × 8.74 × 10.00 in)
Weight: ?
Form factor: Mobile
Manufactured: Between 1950 and 195x in Great Britain

Other features

Usage: Marine / Navy
Features + options: -
Accessories: -
RigReference ID: 6355
MPN: EDDYSTONE-000720

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
