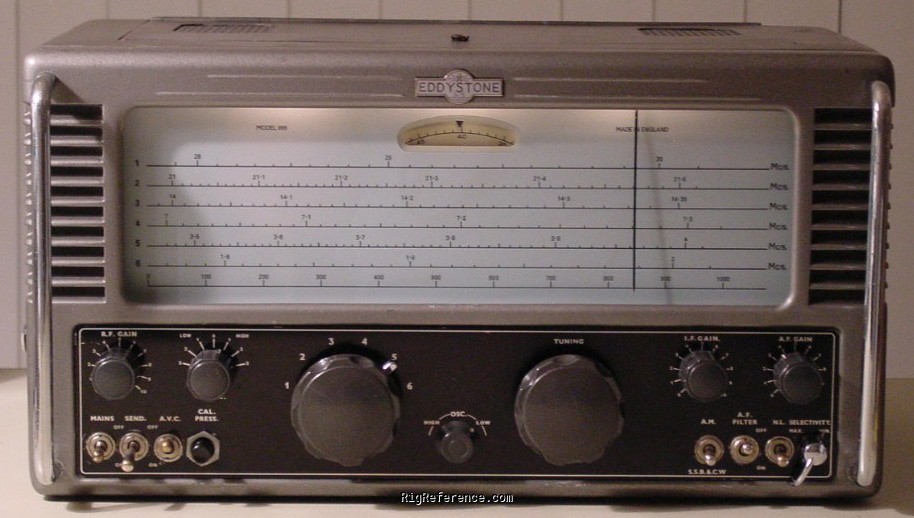

Eddystone 750

Communications receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

The Eddystone 750 receiver is a double superheterodyne type and combines high sensitivity with good signal-to-noise ratio. This model uses miniature tubes almost exclusively. A few variants were made over the years in the form of the 750/1 and 750/2 from 1955.

Frequency range

RX-range
480-165 kHz / 1.7-4.5 / 4.5-12 / 12-32 MHz
TX-range
-
HAM bands
?
Stability
≤ 0.5 %
Tuning steps
?
Filters
?

Receiver

Modulations
AM   CW
Sensitivity
?
Selectivity
?
Receiver system
Double conversion superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
External speaker or headphones required

Transmitter

Modulations
-
RF-Output
?

Connections

Antenna
Clamps / screws
Impedance
70/80Ω

Electrical

Power requirements
Mains (110 / 200-220 / 230-250 V AC)
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station
Manufactured
Between 1950 and 195x in Great Britain
MPN
EDDYSTONE-000750

Other features

Memories
?
Usage
Military communication
Features + options
BFO
S-meter socket for Cat. No. 669
Accessories
?
