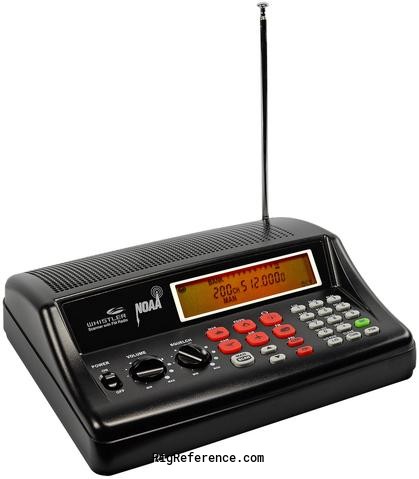

Whistler WS1025 DESKTOP/MOBILE SCANNER RADIO

 (0.0/5)  Add a review   View all reviews (0)   Add to my shack



Login or Register to upload images

This 200-channel scanner lets you listen to FM radio bands and can be categorized into 10 separate memory banks. Also, it offers the convenience of one-touch searches of marine, fire/police, air, ham and weather frequencies. This model similar to the GRE / GRECOM PSR-200 and shares software with the Whistler WS1010.

Frequency range

RX-range
29-54 / 87.3-174 / 380-512 MHz
TX-range
-
HAM bands
6m  2m  70cm
Stability
-
Tuning steps
5 / 12.5 / 100 kHz
Filters
-

Receiver

Modulations
FM   W-FM
Sensitivity
29-54 MHz: 0.5 µV
108-136.9875 MHz: 1.0 µV
137-174 MHz: 0.5 µV
38 0 -512 MHz: 0.7 µV
Selectivity
8 kHz @ -6 dB / 17 kHz @ -60 dB
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.7 MHz
2nd: 455 kHz
Image rejection
-
Audio output
700 mW

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
BNC
Impedance
50Ω

Electrical

Power requirements
9 V DC
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
210 × 175 × 60 mm (8.27 × 6.89 × 2.36 in)
Weight
700 gr (1.5 lbs) without antenna
Form factor
Mobile
Manufactured
Between 2014 and 201x in USA
MPN
WHISTLER-WS001025

Other features

Memories
200 channels in 10 bank(s) @ 80 channels/second
Usage
Amateur / Ham radio operators
Features + options
Backlit LCD
PC programmable
SAME weather alerts
Skywarn Storm Spotter
Accessories
-
