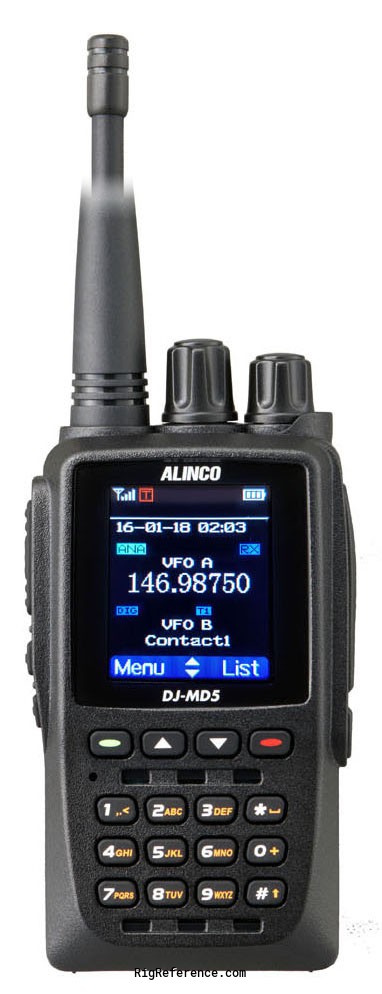

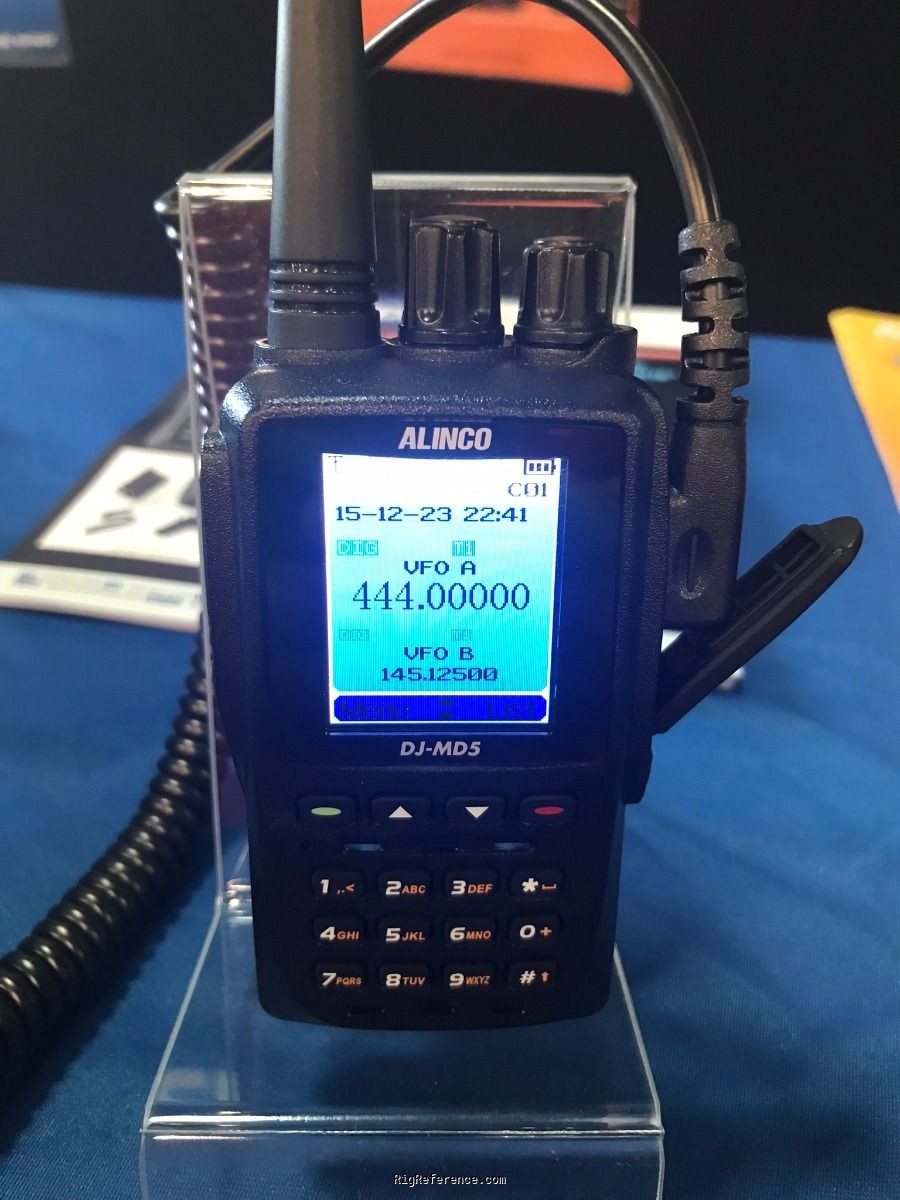

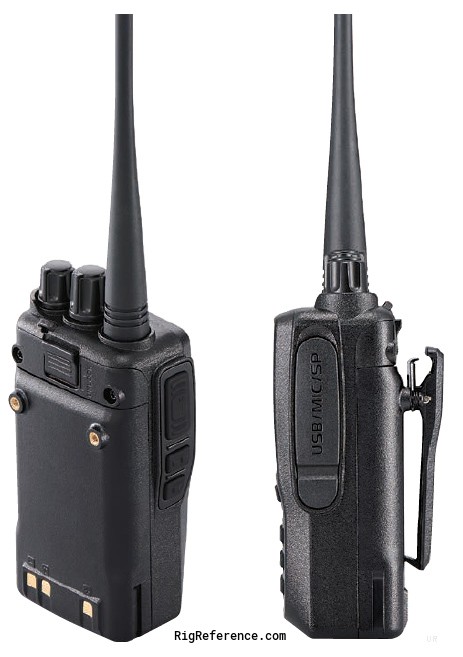

Alinco DJ-MD5 Handheld 2-slot DMR Transceiver
Compact dual-band DMR transceiver. The unit covers the 2 m and 70 cm bands in analog (FM) and digital modes. Supported modulations are 7K60FXD / 7K60FXE for digital and 16K0F3E / 11K0F3E for analog. Built-in GPS receiver, preprogrammable short text messages, programmable VFO, color display, two-slot DMR, automatic analog/digital detection and voice recorder.
Frequency range
- RX-range
- 136-174 / 400-480 MHz
- TX-range
- 136-174 / 400-480 MHz
- HAM bands
- 2m 70cm
- Stability
- +/- 2.5 p.p.m.
- Tuning steps
- 5 / 10 / 12.5 / 15 / 20 / 25 kHz
- Filters
- -
Receiver
- Modulations
- FM DMR
- Sensitivity
- Analog (12 dB SINAD)
25 kHz: 0.25 µV
12.5 kHz: 0.35 µV
Digital (BER)
5%: 0.3 µV
1%: 0.7 µV - Selectivity
- 25 kHz (analog) / 12.5 kHz (digital/analog)
- Receiver system
- -
- IF-frequencies
- -
- Image rejection
- -
- Audio output
- 1000mW /16Ω @ <= 5% THD
Transmitter
- Modulations
- FM DMR
- RF-Output
- 0.2 / 1 / 2.5 / 5 W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
Electrical
- Power requirements
- 7.4 V DC 1700 mAh Li-ion battery
- Current drain RX
- -
- TX
- -
Physical
- Dimensions (w×h×d)
- 59 × 118 × 40 mm (2.32 × 4.65 × 1.57 in)
- Weight
- 256 gr (9.0 oz) with battery and antenna
- Form factor
- Handheld
- Manufactured
- Between 2018 and 20xx in China
- MPN
- Alinco DJ-MD5
Other features
- Memories
- 4000 channels in 1 bank(s)
- Usage
- Amateur / Ham radio operators
- Features + options
- DMR Tier I and Tier II
1.77 inch TFT color LCD
VFO / MR Switch
Preprogrammable short messages - Accessories
- -
Manuals, diagrams and brochures
- Alinco DJ-MD5 Leaflet submitted by RigReference
- Upload relevant documents
- Show other documents.
Stories & reviews
Ok... I got the HT... NOW WHAT?!
Alinco DJ-MD5, Handheld 2-slot DMR Transceiver
Ok... I bought bleeding edge. I would expect a little better directions. NOTHING. Nothing on their site or the vendors\distributor's site. I got a 23 page user manual which basically had more specs and what the buttons where for. Now I would like software and a PDF that's a little more detailed please.
Unboxing: standard packaging, battery, charge stand, belt clip, antenna, and the radio. The radio was charged I would say half way.
Just need that software\directions.... So close...
- Overall
- Performance
- Build quality
- Features
- User friendlyness
- Value for money
- Aquired
-
Mint condition in 2018
USD 169.00
Operation Manual and software for the DJ-MD5
Alinco DJ-MD5, Handheld 2-slot DMR Transceiver
Chris,
at this page, under the "download" tab, you will find the CPS utility, USB drivers and operation manual (way more detailed than the user manual):
https://remtronix.com/digital-radio/dmr-radios/dj-md5tgp/
- Overall
- Performance
- Build quality
- Features
- User friendlyness
- Value for money
- Aquired
-
Mint condition in 2018
USD 169.99
First DMR Rig
Alinco DJ-MD5, Handheld 2-slot DMR Transceiver
I've owned this radio for about a month, and learned to program the Channels and Settings manually -- mainly because we're an OSX (not a Windows) household. Know that there is not a Mac version of the programming software available, at least that I'm aware of.
Overall, I'm satisfied with this as a first radio. It's helped me power through the steep learning curve. The unit seems well made, reports are generally very good, and I was able to muddle through setup over the course of a day or two along with a new OpenSpot2 hotspot. I've only connected directly to a DMR repeater once -- the rest of the time has been through the hotspot here at home.
Here are the gotchas:
1) Documentation, videos, and help are sorely lacking. Yes you can find some more detailed information (see other posts about the Commercial reseller that has manuals) -- but do not expect to have anything useful packaged with the radio, beyond a description of the controls. I purchased an Alinco vs. a cheaper Chinese radio, hoping to avoid this very issue.
2) Processor power appears to be very limited -- as audio cuts out on receive as you scroll through the menus.
3) Just not a super intuitive menu for setup. But, I will say this has as much to do with DMR being a Commercial technology adapted to Amateur Radio use -- and the associated public-sector use cases that drive the features on the radio. Features most hams will never find a use for.
4) The software that you can download (again you have to search around for this software) to load your code plugs is lacking in documentation -- so plan on making mistakes and suffering a bit of frustration as you build your code plugs. There are a few videos on YouTube stepping you through this, made by other hams -- but nothing decent that I can find from Alinco.
5) For hotspot use, I'd recommend getting a super compact Rubber Duck vs. the big one that comes with the unit.... I've replaced mine with a Diamond that's about 3 inches long for hotspot use.
- Overall
- Performance
- Build quality
- Features
- User friendlyness
- Value for money
- Aquired
-
Mint condition in 2019
USD 175.00
What is it worth?
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Alinco DJ-MD5. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's value of the Alinco DJ-MD5 might be around:
- USD 174.00
