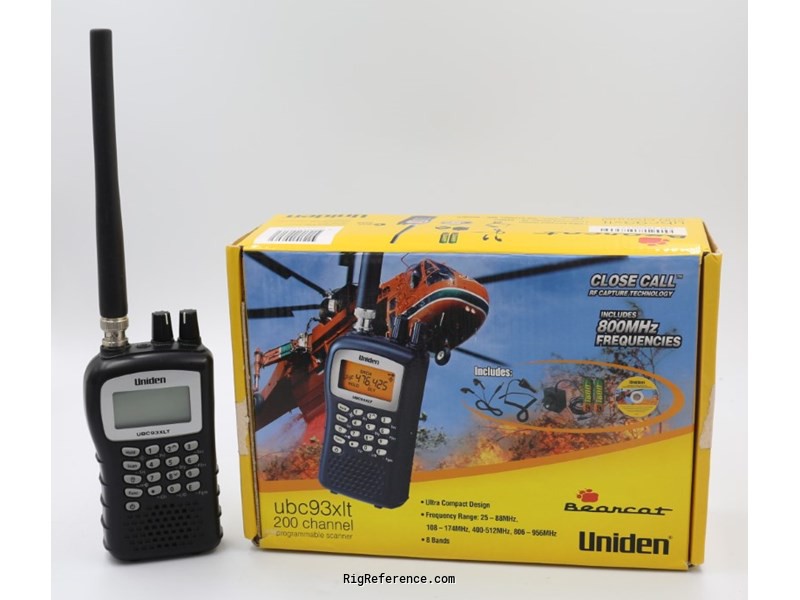

Uniden-Bearcat UBC93XLT

Handheld HF/VHF/UHF Scanner / receiver

Add a review Add to my shack


Login or Register to upload images

General characteristics

HAM bands
6m
Frequency stability
?
Tuning steps
5 / 6.25 / 12.5 kHz

Receiver

RX-range
25-88 / 108-174 / 400-512 / 806-956 MHz
Modulations
AM   FM
Sensitivity
VHF: 0.3 µV (12 dB SINAD)
UHF: 0.4 µV (12 dB SINAD)
Selectivity
?
Filters
?
Receiver system
Triple conversion superheterodyne
IF-frequencies
1st: ~380 MHz
2nd: 21.3 MHz
3rd: 450 kHz
Image rejection
?
Audio output
490 mW at ?% distortion / 8 ohm

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
2.4-3 V DC (2×R6/AA NiMH or Alkaline batteries) or 6 V DC external
Current drain RX
110-310 mA
TX
-

Physical

Manufactured
Between 2011 and 201x in China
Dimensions (w×h×d)
68 × 115 × 32 mm (2.68 × 4.53 × 1.26 in)
Weight
165 gr (5.8 oz)
Form factor
Handheld

Other features

Memories
200 channels in 10 bank(s) @ 50 channels/second
Usage
Amateur / Ham radio operators
Features + options
"Close Call" RF capture
Backlit display
Accessories
?
MPN
UNIDEN-BEARCAT-UBC000093XLT

Manuals, diagrams and brochures

Uniden UBC93XLT Owners Manual PDF - 1.61 MB, submitted by RigReference
