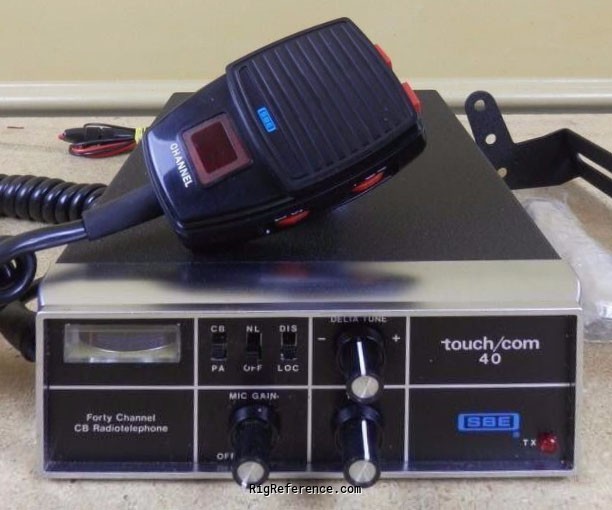

SBE Touch/com 40

Mobile CB Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find SBE Touch/com 40 rigs and spare parts on eBay Find the SBE Touch/com 40 on Amazon
We receive a small fee when you buy through these links, thank you!

40 channel version of the SBE Formula D touch/com.

Frequency range

RX-range
26.965-27.? MHz
TX-range
26.965-27.? MHz
HAM bands
11m (CB)
Stability
± 0.003 %
Tuning steps
Channelized
Filters
?

Receiver

Modulations
AM
Sensitivity
0.5 µV (10 dB S+N/N)
Selectivity
20 kHz (-50 dB), 40 kHz (-60 dB)
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10 MHz
2nd: 455 kHz
Image rejection
-40 dB
Audio output
3.5 W at 10% distortion / 8 ohm

Transmitter

Modulations
AM
RF-Output
4 W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
11.7-15.9 V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
170 × 60 × 240 mm (6.69 × 2.36 × 9.45 in)
Weight
2.27 kg (5.0 lbs)
Form factor
Mobile
Manufactured
Between 197x and 197x in Japan
MPN
SBE-TOUCH/COM 000040

Other features

Memories
40 channels in 1 bank(s)
Usage
Citizen Band (27Mc)
Features + options
PA
Delta tune (± 750 Hz)
Accessories
?
