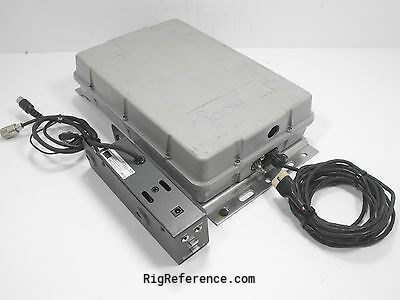

The ICOM AH-2 is an HF Antenna tuner. It covers 1.8-30 MHz for both receive and transmit. RF output is 5-15 W. Power requirements are 13.8 V DC and the current drain in receive mode is 2 A. The AH-2 weighs 3.1 kg.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- None
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- 2 A
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- 3.10 kg (6.8 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6607
- MPN
- ICOM-AH-000002
Manuals, diagrams and brochures
- ICOM AH-2 Brochure PDF - 1.09 MB, submitted by RigReference
- ICOM AH-2 Instruction Manual PDF - 3.73 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM AH-2. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM AH-2 in Good condition is around:
- JPY 64,111
These estimates are based on the following prices:
