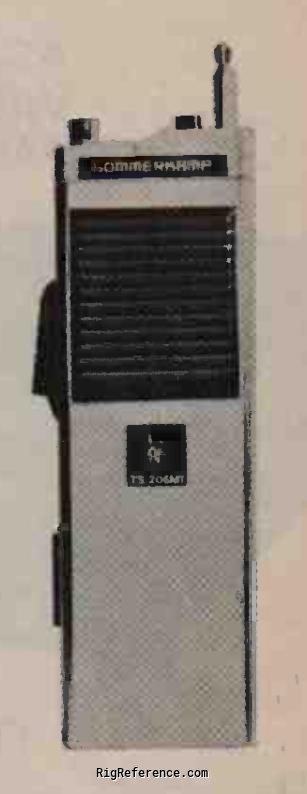

Sommerkamp TS-206MT

VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Sommerkamp TS-206MT rigs and spare parts on eBay

Find the Sommerkamp TS-206MT on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

Marine version of the Sommerkamp TS-206AT with only channels 6 and 16. Frequency range : 156-163 MHz. A version with 163-173 MHz was available on special order only.

General characteristics

HAM bands: None
Frequency stability: ?
Tuning steps: ?
Memories: 2 channels in 1 bank(s)

Receiver

RX-range: 156-163 MHz
163-173 MHz on special order only.
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: Single conversion superheterodyne
IF-frequencies: 10.7 MHz
Image rejection: ?
Audio output: Internal speaker

Transmitter

TX-range: 156-163 MHz
163-173 MHz on special order only.
Modulations: FM
RF-output: 2 W

Connections

Antenna: Built-in telescopic
Impedance: ?
Other: -

Electrical

Power requirements: ?V DC
Current drain RX: 9 mA
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Handheld
Manufactured: Between 197x and 197x

Other features

Usage: Marine / Navy
Features + options: -
Accessories: -
RigReference ID: 6609
MPN: SOMMERKAMP-TS-000206MT
