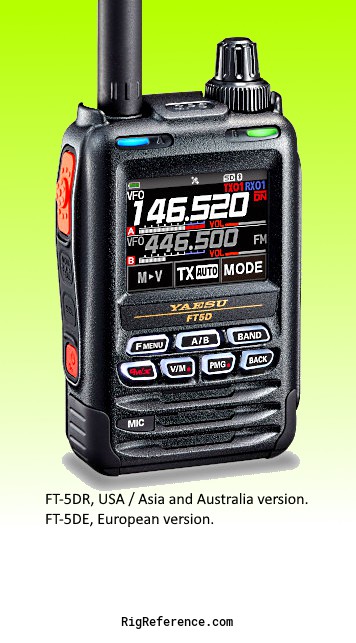

Yaesu FT-5DE

General characteristics

HAM bands

2m  70cm

Frequency stability

±2.5 p.p.m. @ -20 to +60°C (-4 to +140°F)

Tuning steps

5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz

Memories

900 channels in 24 bank(s)

Receiver

RX-range

0.5-1000 MHz

Modulations

AM   FM   N-FM   W-FM   C4FM   DV

Sensitivity

AM (10 dB S/N)
0.52-30 MHz: 3 µV
108-137 MHz: 1.5 µV
FM (12 dB SINAD)
30-54 MHz: 0.35 µV
54-76 MHz: 1 µV
137-140 MHz: 0.2 µV
140-150 MHz: 0.16 µV
150-174 MHz: 0.2 µV
174-222 MHz: 1 µV
222-350 MHz: 0.5 µV
350-400 MHz: 0.2 µV
400-470 MHz: 0.18 µV
470-580 MHz: 1.5 µV
580-800 MHz: 3 µV
800-1000 MHz: 1.5 µV
W-FM (12 dB SINAD)
76-108 MHz: 1.5 µV
DV/C4FM (BER 1%)
2 m/70 cm: 0.19 µV

Selectivity

AM/FM: 12 kHz (-6 dB), 35 kHz (-60 dB)

Filters

?

Receiver system

Direct conversion (AM/WFM) Double conversion superheterodyne (FM/N-FM)

IF-frequencies

1st IF: 58.05 MHz (A-band) - 57.15 MHz (B-band)
2nd IF: 450 kHz

Image rejection

?

Audio output

1 W at 10% distortion / 8 ohm

Transmitter

TX-range

144-146 / 430-440 MHz (Europe)

Modulations

FM   N-FM   C4FM

RF-output

0.3 / 1 / 2.5 / 5 W

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

3.6-7.4 V DC or 4-16 V DC external

Current drain RX

74-240 mA

TX

1.9 A max

Physical

Dimensions (w×h×d)

65 × 100 × 34 mm (2.56 × 3.94 × 1.34 in) with SBR-14Li

Weight

282 gr (10.0 oz) with SBR-14Li and antenna

Form factor

Handheld

Manufactured

Between 2021 and 202x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

CTCSS/PL with tone scan. DCS. DTMF. AMS. Audio recorder. Micro-SD card slot.
Bluetooth. APRS (1200/9600bd). Built-in GPS. Band scope. VOX. Wires-X. Voltmeter.
Attenuator (10 dB). IPX7 water proof. Clock and timer. Twin RX (Even dual DV!)

Accessories

-

RigReference ID

6616

MPN

YAESU-FT-000005DE
