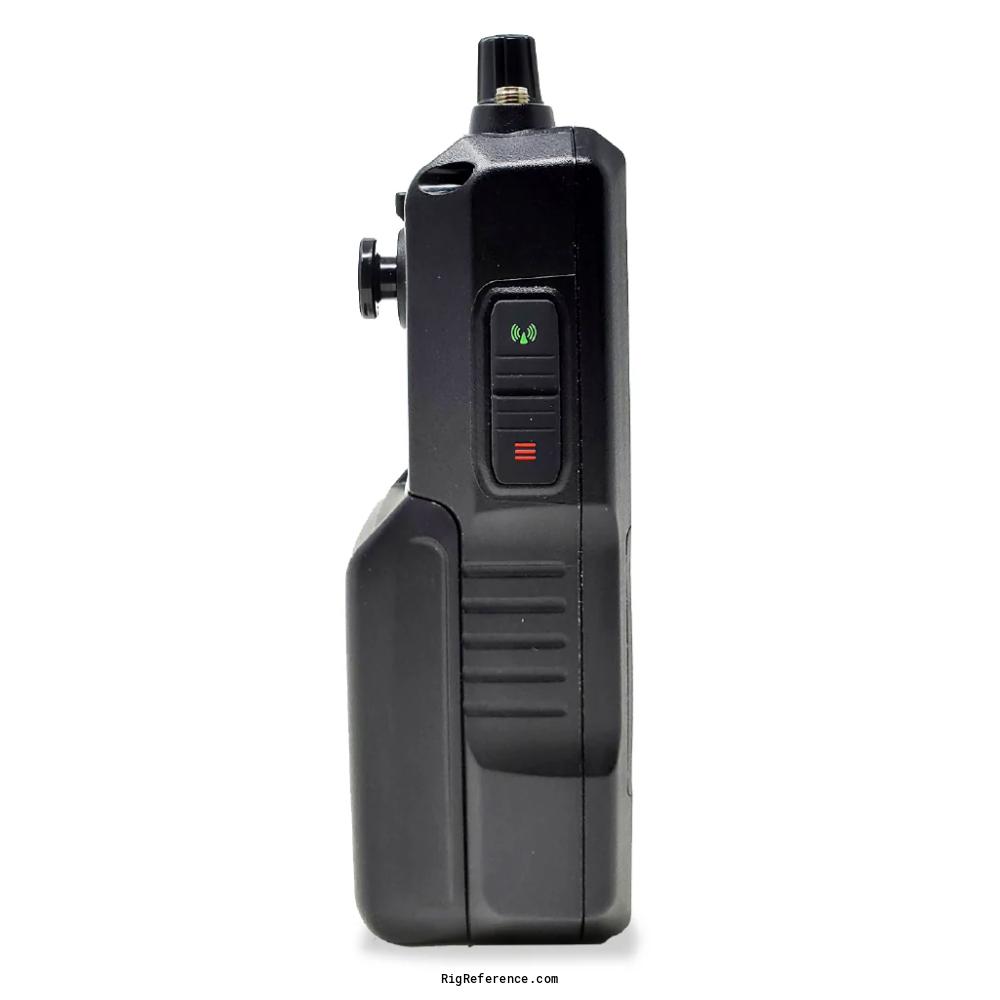

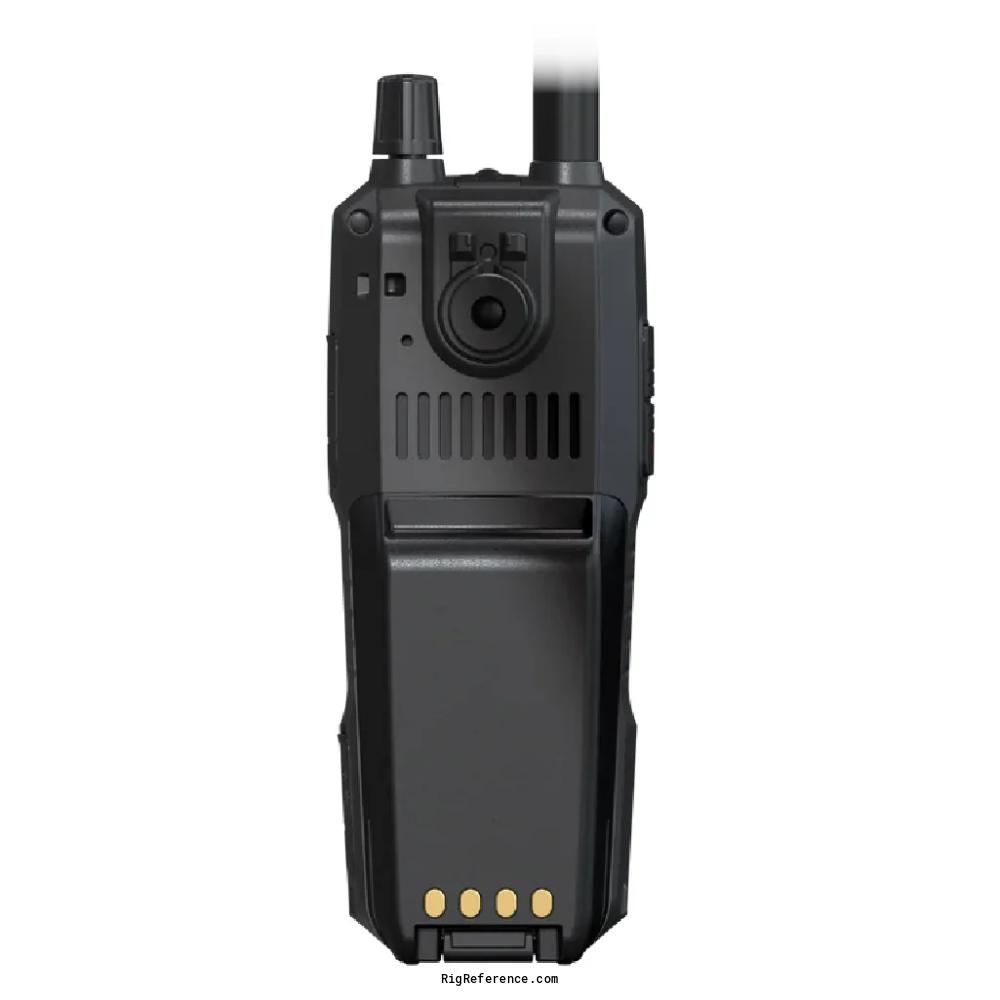

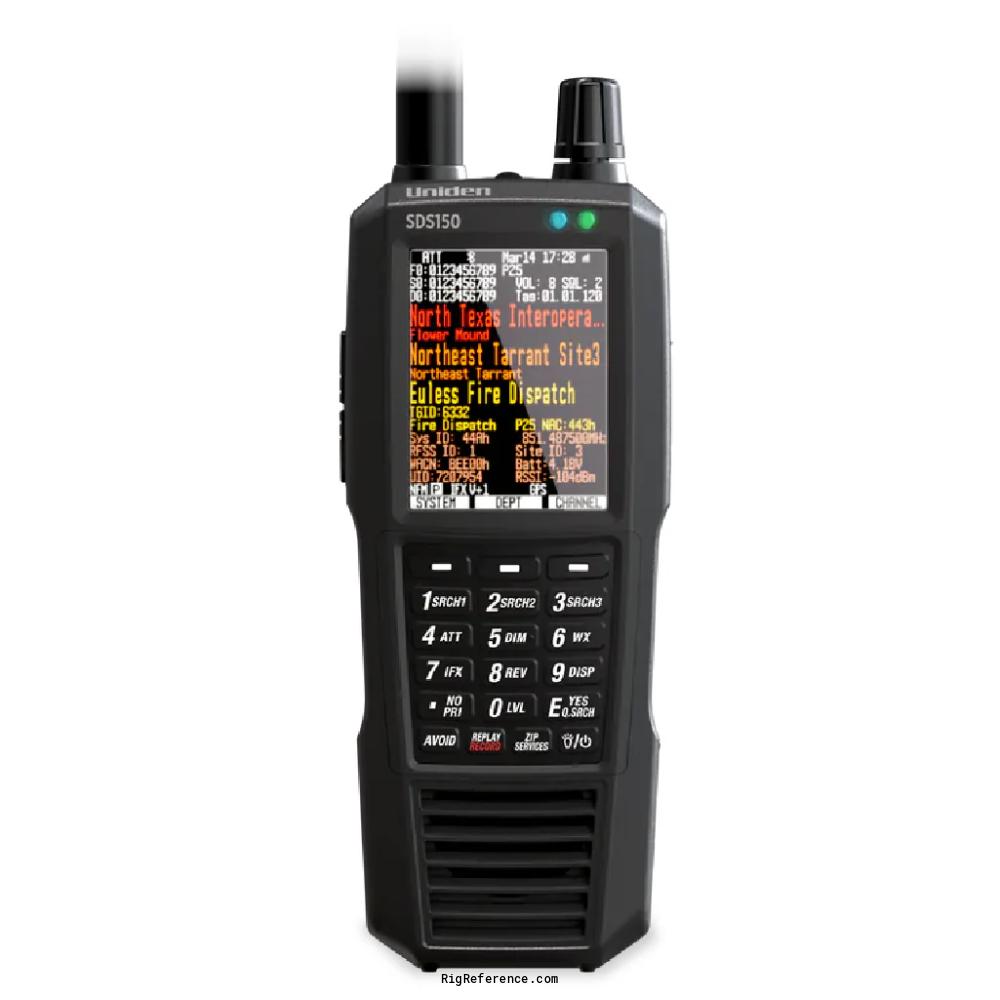

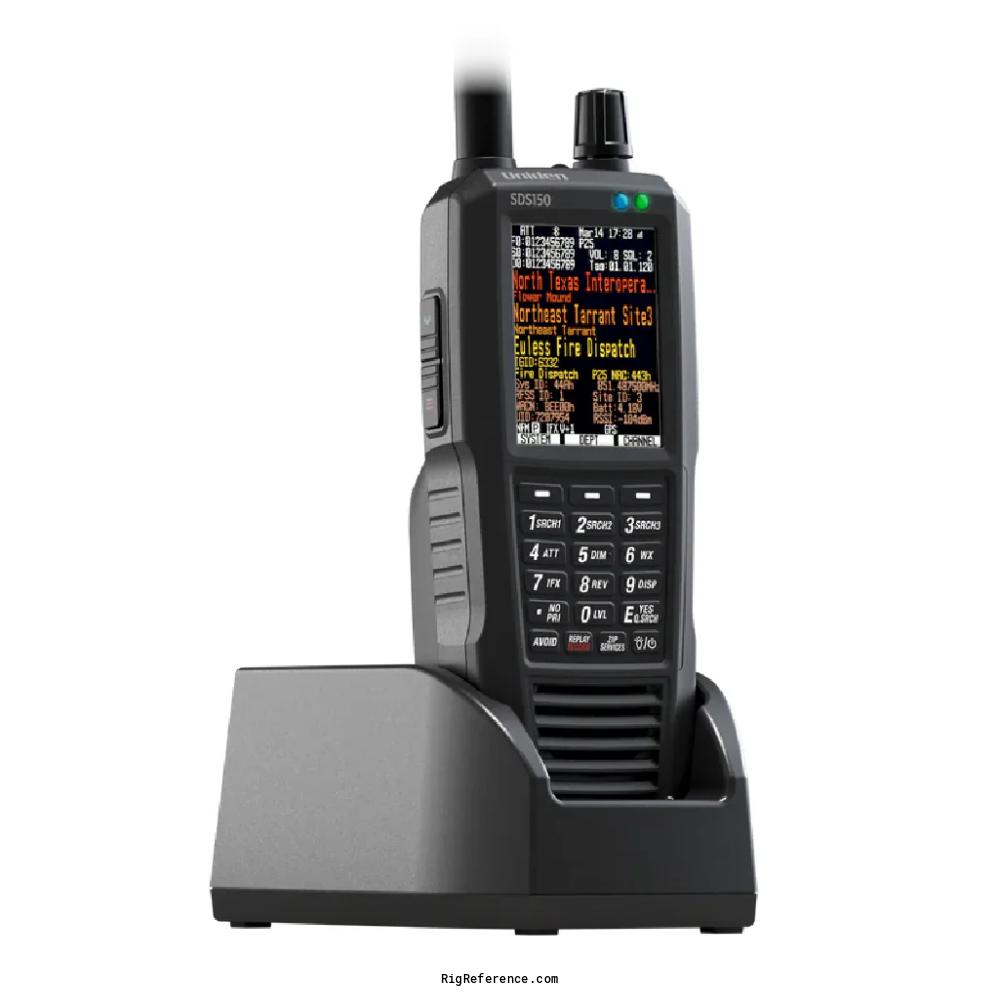

Uniden-Bearcat SDS150

General characteristics

HAM bands

11m (CB)  6m  2m  1.25m  70cm  33cm  23cm  10m  4m

Frequency stability

?

Tuning steps

5 / 6.25 / 7.5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz

Memories

?

Receiver

RX-range

25-512 / 758-824 / 849-869 / 894-960 / 1240-1300 MHz

Modulations

AM   FM   N-FM   W-FM   APCO-25   Digital (other)   DV

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

Software defined (SDR)

IF-frequencies

?

Image rejection

?

Audio output

?

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

3.7 V DC (Li-Ion battery) or USB-C

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Handheld

Manufactured

Between 2025 and 20xx in Vietnam

Other features

Usage

Amateur / Ham radio operators

Features + options

Customizable color display
Close call
Bluetooth LE. US & Canadian
HomePatrol database
CTCSS/PL and DCS
Backlit keypad
USB-C connector
S.A.M.E. weather alert
Recording/playback (Up to 240 seconds)
Trunktracker X
Tracks Motorola, EDACS, X2-TDMA, P25 and LTR
IPX4/JIS4 water and dust resistant
PC programmable
GPS
Micro-SD card slot
Multicolor LED alert
Attenuator
Dimmer
Waterfall display

Accessories

-

RigReference ID

6662

MPN

UNIDEN-BEARCAT-SDS000150

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat SDS150. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Receiver equipment, the estimated value of the Uniden-Bearcat SDS150 is around:

• USD 140 ~ USD 260

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
