Anytone AT-5100

Amateur Mobile Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Add a review (+10 rep) Own this rig? Add it to your shack

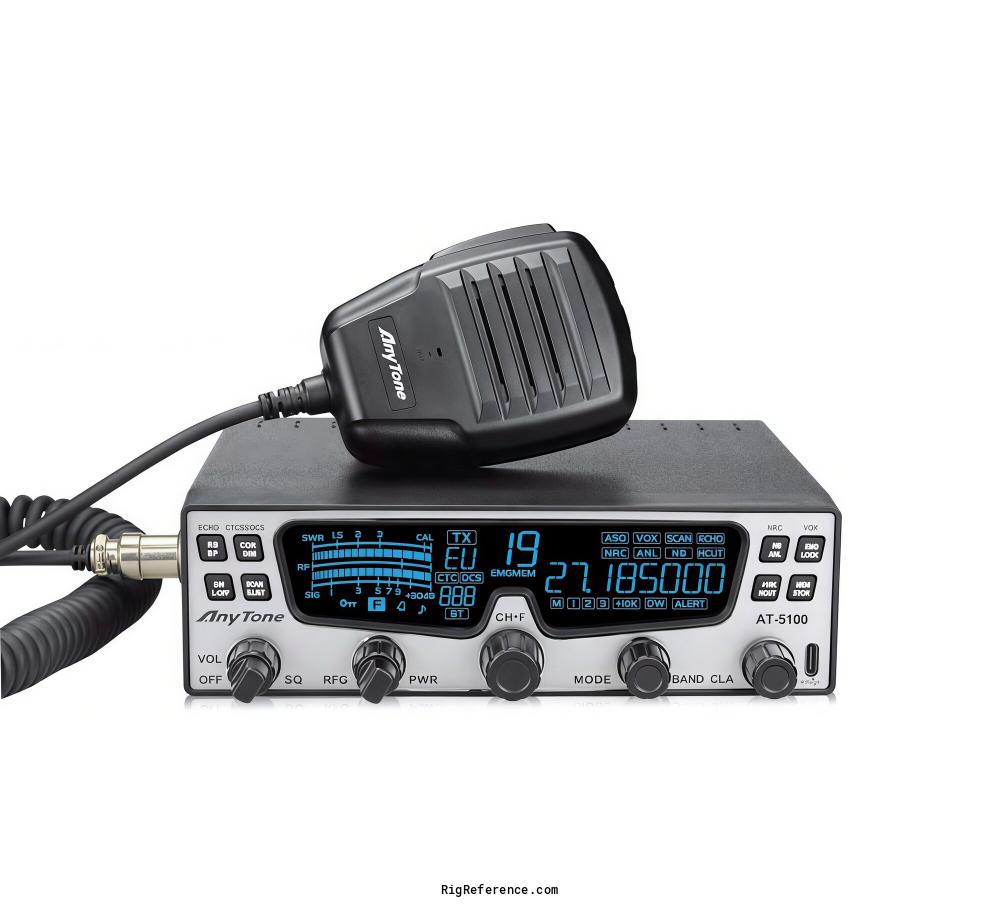

AT-5100 front panel with microphone - Submitted by Peter

SSB carrier suppression: 55 dB
Unwanted sideband: 50 dB
Adjacent channel rejection: 60 dB
RF gain control: 45 dB
Operating temperature: -20 to +50 °C

General characteristics

HAM bands: 10m
Frequency stability: ±5.0 ppm
Tuning steps: 10 Hz / 100 Hz / 1 kHz / 5 kHz / 10 kHz / 100 kHz / 1 MHz
Memories: ?

Receiver

RX-range: 28.000-29.700 MHz (export version: 24.715-30.105 MHz)
Modulations: AM FM CW USB LSB
Sensitivity: AM: 1.0 µV (10 dB S+N/N)
FM: 1.0 µV (20 dB S+N/N)
SSB: 0.25 µV (10 dB S+N/N)
Selectivity: AM/FM: 6 dB @ 3 kHz, 50 dB @ 9 kHz
SSB: 6 dB @ 2.1 kHz, 60 dB @ 3.3 kHz
Filters: ?
Receiver system: ?
IF-frequencies: AM/FM: 10.695 MHz 1st, 455 kHz 2nd; SSB: 10.695 MHz
Image rejection: 65 dB
Audio output: ?

Transmitter

TX-range: 28.000-29.700 MHz (export version: 24.715-30.105 MHz)
Modulations: AM FM CW USB LSB
RF-output: AM: 10 W (35 W PEP), FM: 30 W, SSB: 30 W PEP

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12 VDC
Current drain RX: ?
TX: 10 A (with modulation)

Physical

Dimensions (w×h×d): 175 × 53 × 187 mm (6.89 × 2.09 × 7.36 in)
Weight: 1,000 gr (2.2 lbs) about 1.0 kg
Form factor: Mobile
Manufactured: Between 20xx and 20xx

Other features

Usage: Amateur / Ham radio operators
Features + options: Bands A-I with 40 programmable channels each, plus VFO
NRC digital noise reduction on RX and TX
CTCSS/DCS with RX/TX split
Dual watch
Emergency channel
PA function
PC programming
Accessories: -
RigReference ID: 6669
MPN: ANYTONE-AT-005100
