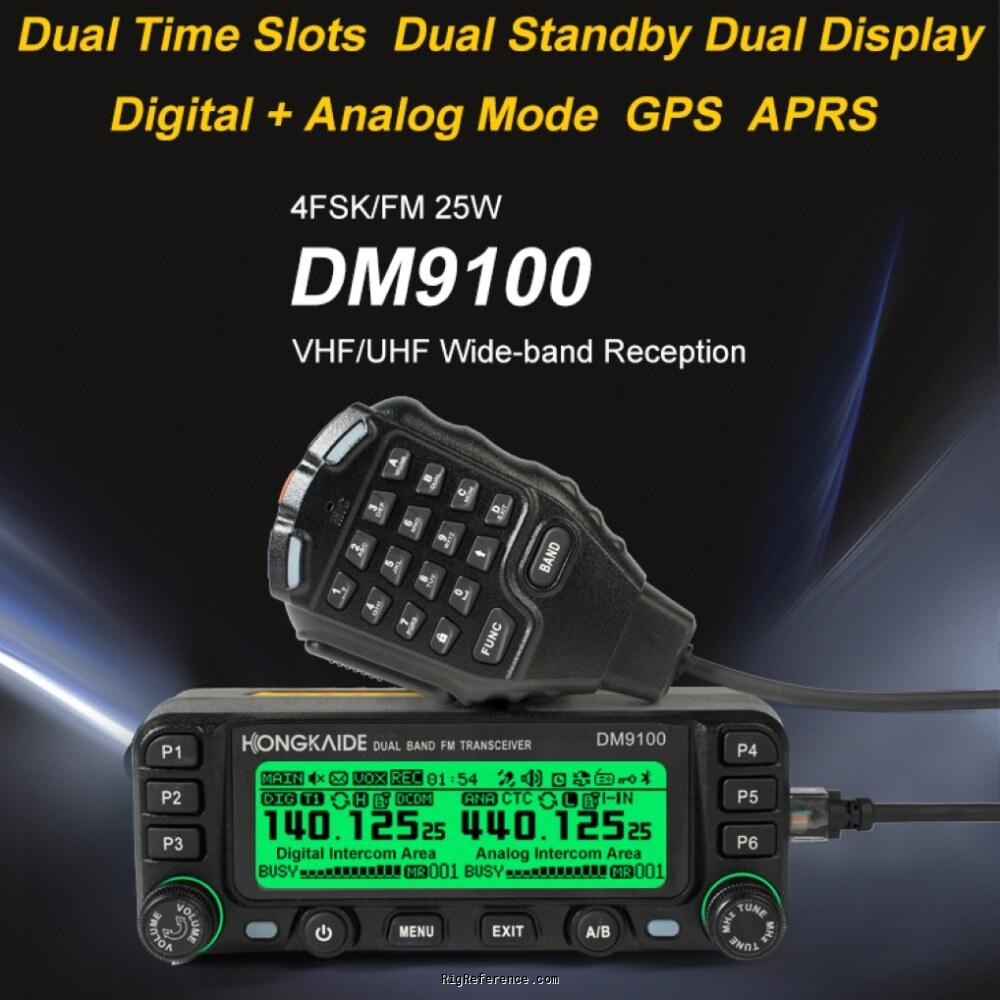

Zastone DM9100

General characteristics

HAM bands

2m  70cm

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

136-174 / 400-470 MHz
Airband 113-135 MHz
FM broadcast 64-108 MHz

Modulations

AM   FM   N-FM   W-FM   DMR

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

136-174 / 400-470 MHz

Modulations

FM   N-FM   DMR

RF-output

25 W

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

12-13.8 V

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

150 × 58 × 75 mm (5.91 × 2.28 × 2.95 in)

Weight

410 gr (14.5 oz)

Form factor

Mobile

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

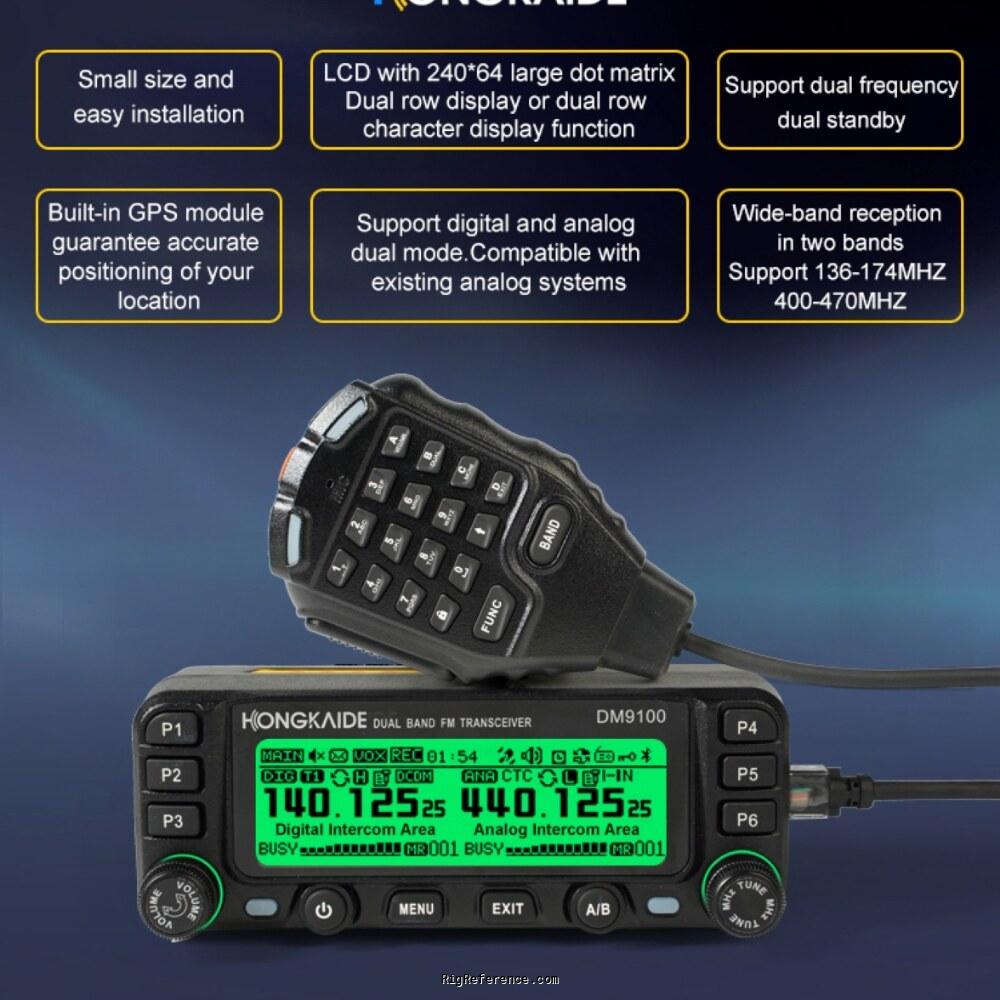

Features + options

Dual-band DMR (4FSK) / FM mobile
Dual time slot
GPS / APRS

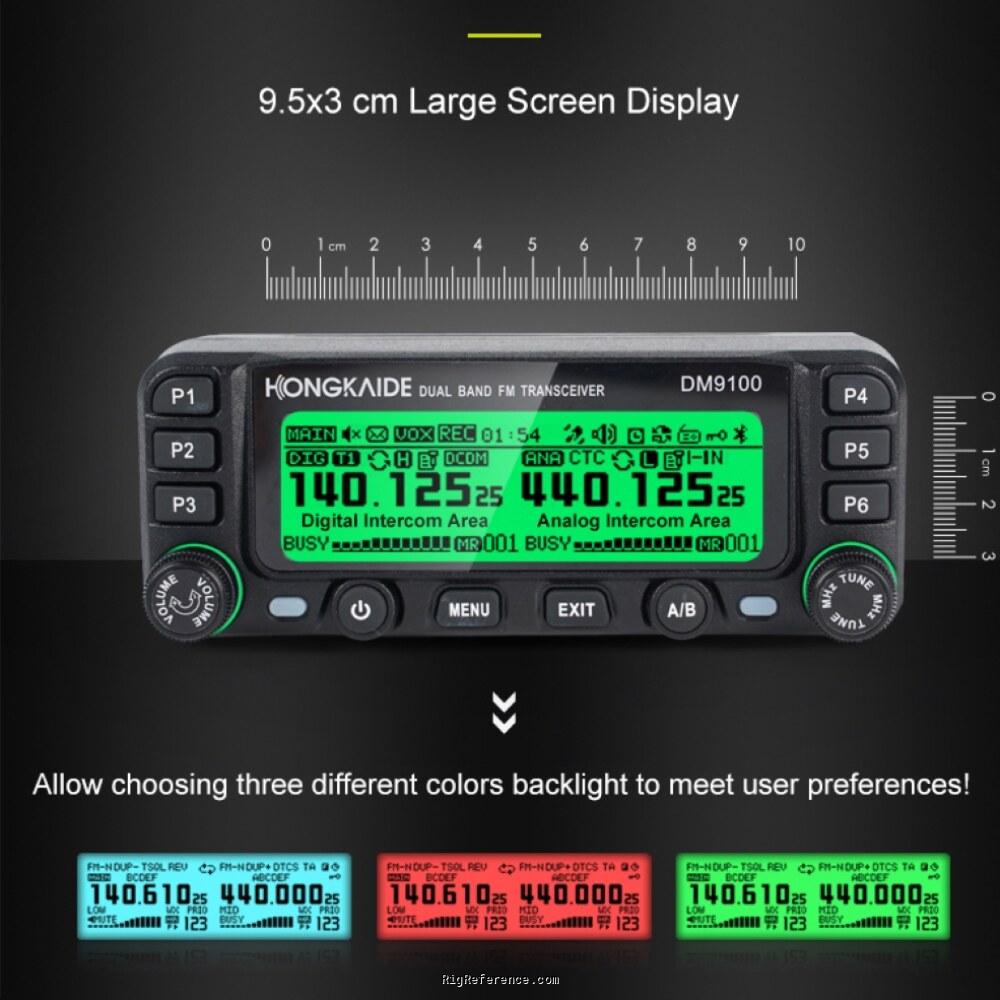

Dual row display
P1-P6 programmable keys
Cooling fan

Accessories

-

RigReference ID

6796

MPN

ZASTONE-DM009100
