Zastone RS-928

Amateur Mobile Linear Amplifier

Specs Manuals (0) Reviews (0) Prices (0) Compare

Add a review (+10 rep) Own this rig? Add it to your shack

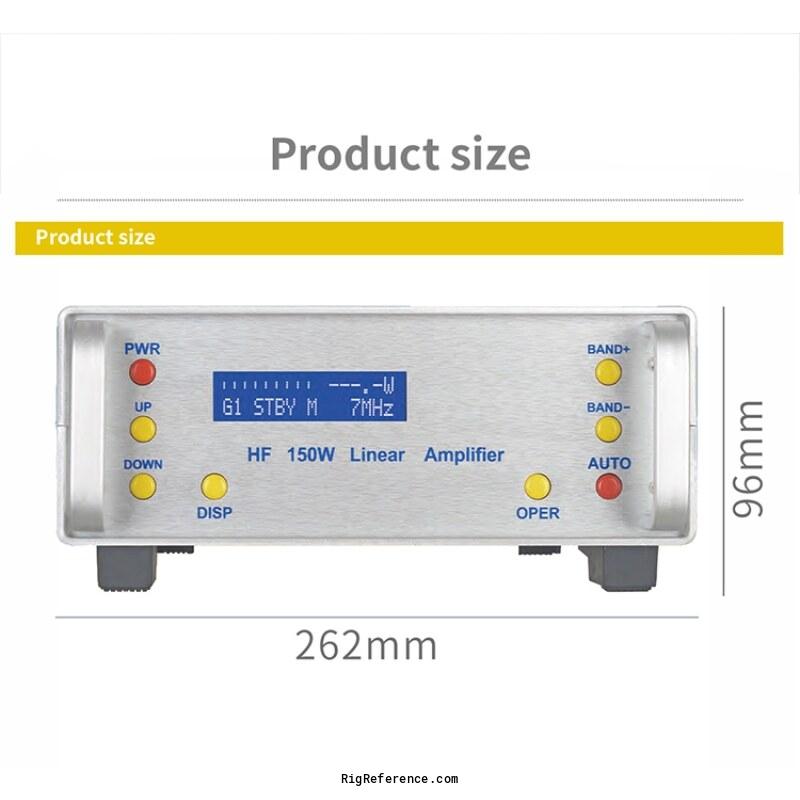

Front view with dimensions - Submitted by Peter

Operating temperature: -20 to +60 °C
Storage: -40 to +85 °C
Product title calls it an HF radio; official spec sheet and front panel identify it as an HF 150 W linear amplifier

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Transmitter

TX-range: 0.5-30 MHz
Modulations: -
RF-output: 150 W max. (input 15 W max.)

Connections

Antenna: -
Impedance: ?
Other: -

Electrical

Power requirements: 13.8 V DC
Current drain RX: 400 mA or less (standby)
TX: 25 A max.

Physical

Dimensions (w×h×d): 215 × 96 × 262 mm (8.46 × 3.78 × 10.31 in)
Weight: 2.10 kg (4.6 lbs)
Form factor: Mobile
Manufactured: Between 20xx and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: HF 150 W linear amplifier
FM / AM / SSB / CW / FT8
Half-duplex
Automatic band switching
Standing-wave protection
High-definition parameter display
Accessories: -
RigReference ID: 6815
MPN: ZASTONE-RS-000928

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No manuals yet for the Zastone RS-928. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.

: Upload relevant documents

Reviews

Be the first to review the Zastone RS-928

No reviews yet. Share your experience and earn +10 reputation.

Write the first review

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Zastone RS-928. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Linear Amplifier equipment, the estimated value of the Zastone RS-928 is around:

USD 479 ~ USD 889

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by

Login or Register to submit prices
