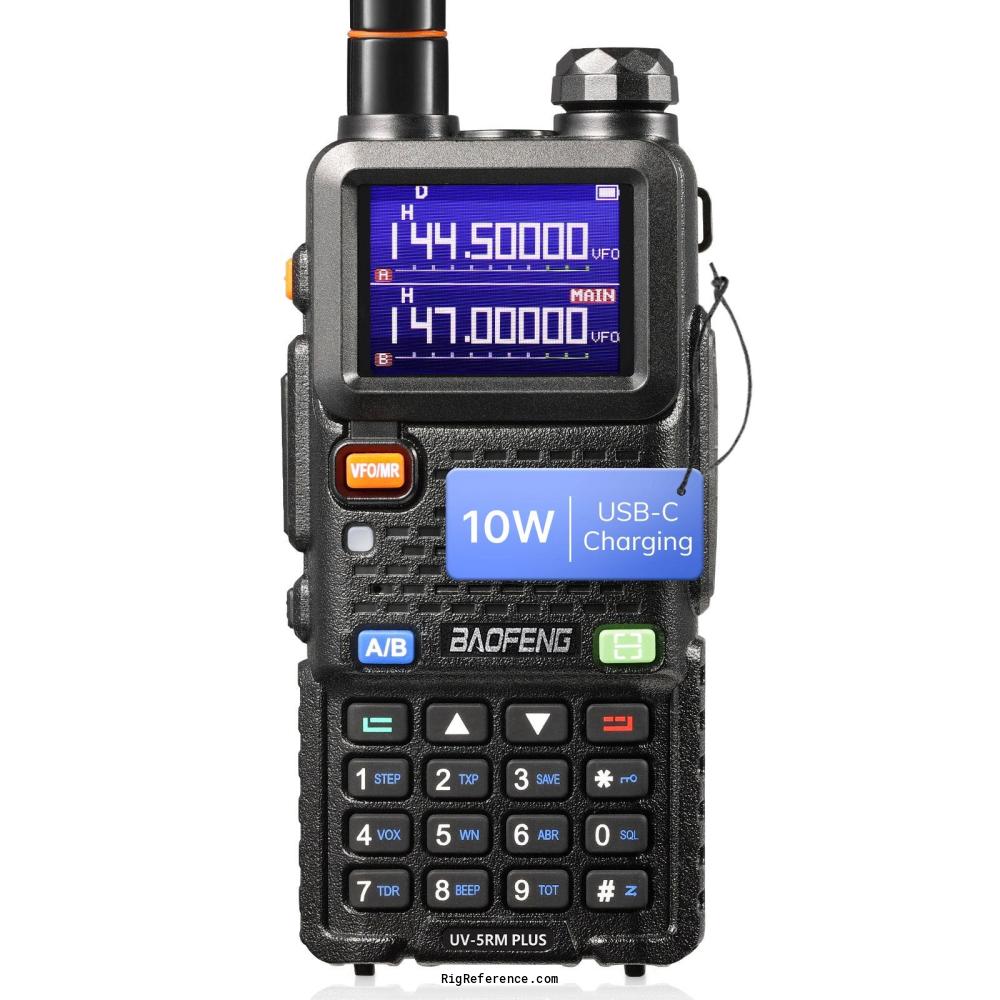

Baofeng UV-5RM Plus

General characteristics

HAM bands

2m  1.25m  70cm

Frequency stability

?

Tuning steps

?

Memories

999 channels in bank(s)

Receiver

RX-range

FM broadcast 88-108 MHz, AM airband 108-136 MHz
136-174 / 220-260 / 350-390 / 400-520 MHz
NOAA weather
EU version: FM broadcast, airband, VHF & UHF

Modulations

AM   FM   N-FM   W-FM

Sensitivity

0.25 µV (12 dB SINAD)

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

1 W (16 ohm)

Transmitter

TX-range

136-174 / 220-260 / 400-480 MHz

Modulations

FM   N-FM

RF-output

10 W

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

7.4 V DC ±10%, Li-ion battery 2500 mAh USB-C charging

Current drain RX

≤380 mA

TX

≤2800 mA

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Handheld

Manufactured

Between 20xx and 20xx

Other features

Usage

Amateur / Ham radio operators

Features + options

Multi-band receive incl. airband and NOAA weather
Up to 10 W
999 channels
Frequency copy (frequency ±2.5 ppm, CTCSS/DCS)
CHIRP supported
2-pin Kenwood accessory jack
USB-C charging

Accessories

-

RigReference ID

6852

MPN

BAOFENG-UV-000005RM-PLUS

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Baofeng UV-5RM Plus. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Baofeng UV-5RM Plus. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Baofeng UV-5RM Plus in Good condition is around:

• USD 26
