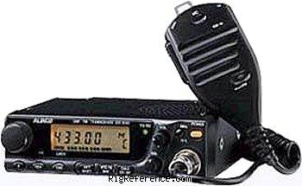

Alinco DR-M40H

General characteristics

HAM bands

70cm

Frequency stability

?

Tuning steps

?

Memories

100 channels in 1 bank(s)

Receiver

RX-range

430-440 MHz

Modulations

FM

Sensitivity

?

Selectivity

6 kHz (-6 dB), 15 kHz (-60 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

60 dB

Audio output

?

Transmitter

TX-range

430-440 MHz

Modulations

FM

RF-output

High: 35 W, Low: 5 W

Connections

Antenna

-

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

0.8 A

TX

Max 10 A

Physical

Dimensions (w×h×d)

140 × 40 × 154 mm (5.51 × 1.57 × 6.06 in)

Weight

860 gr (1.9 lbs)

Form factor

Mobile

Manufactured

Between 199x and 199x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

2342

MPN

ALINCO-DR-M000040H

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-M40H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Alinco DR-M40H is around:

• USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
