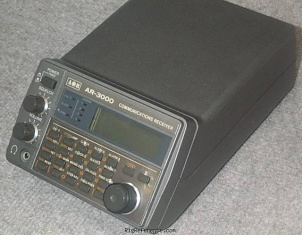

The AOR AR-3000 is a desktop base station scanner / receiver. It covers 0.1-2036 MHz with tuning steps of 50 Hz - 1000 kHz. The radio has 4 memory banks and 400 memory channels. It requires 13.8V DC power and draws 300~500mA in receive mode. Dimensions are 80 × 138 × 200 mm excluding projections. It features RS232C.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ?
- Tuning steps
- 50 Hz - 1000 kHz
- Memories
- 400 channels in 4 bank(s) @ 20 channels/second
Receiver
- RX-range
- 0.1-2036 MHz
- Modulations
- AM N-FM W-FM CW USB LSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- BNC
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 300~500mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 138 × 80 × 200 mm (5.43 × 3.15 × 7.87 in) excluding projections
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1989 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- RS232C
- Accessories
- -
- RigReference ID
- 2356
- MPN
- AOR-AR-003000
Manuals, diagrams and brochures
- AOR AR-3000 Operating Manual PDF - 234.8 kB, submitted by Gerd
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used AOR AR-3000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
