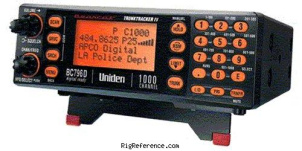

Uniden-Bearcat BC796D

Mobile HF/VHF/UHF Scanner / receiver

Specs Manuals (1) Reviews (0) Prices (1) Compare

Find Uniden-Bearcat BC796D rigs and spare parts on eBay

Find the Uniden-Bearcat BC796D on Amazon

The Uniden-Bearcat BC796D is a mobile scanner / receiver covering 25-512 / 806-956 / 1240-1300 MHz. It features a triple conversion superheterodyne receiver system with tuning steps of 5 / 6.25 / 7.5 / 10 / 12.5 / 20 / 25 / 50 / 100 kHz. The BC796D has 10 memory banks and 1000 memory channels. It also includes features such as APCO25 option, alpha tags, attenuator, auto hold, auto store, backlit display, beep alert, CTCSS / DCS, data skip, PC programmability, radio cloning, rotary control, SAME w/FIPS, service search, tape recorder control, and Trunktracker IV. The audio output is 240 mW. Dimensions are 61 × 177 × 167 mm and the weight is 1.44 kg.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: 5 / 6.25 / 7.5 / 10 / 12.5 / 20 / 25 / 50 / 100 kHz
Memories: 1000 channels in 10 bank(s) @ 100 channels/second

Receiver

RX-range: 25-512 / 806-956 / 1240-1300 MHz
Modulations: AM FM W-FM APCO-25
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: Triple conversion superheterodyne
IF-frequencies: ?
Image rejection: ?
Audio output: 240 mW

Connections

Antenna: BNC
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 4.8V DC, 13.8V DC
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 177 × 61 × 167 mm (6.97 × 2.40 × 6.57 in)
Weight: 1.44 kg (3.2 lbs)
Form factor: Mobile
Manufactured: Between 2004 and 200x

Other features

Usage: Amateur / Ham radio operators
Features + options: APCO25 option
Alpha tags
Attenuator
Auto hold
Auto store
Backlit display
Beep alert
CTCSS / DCS
Data skip
PC programmable
Radio cloning
Rotary control
SAME w/FIPS
Service Search
Tape Recorder control
Trunktracker IV, tracks Motorola I, II & IIi and EDACS and LTR
Accessories: -
RigReference ID: 2455
MPN: UNIDEN-BEARCAT-BC000796D

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Uniden BC796 Programming Control Codes (v. 1.05) PDF - Unknown size, submitted by RigReference

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat BC796D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Uniden-Bearcat BC796D is around:

EUR 27.00

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2005	EUR 500.00	Used / Good	magee31
