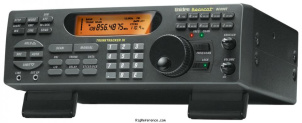

The Uniden-Bearcat BC898T is a Mobile HF/VHF/UHF Scanner / receiver. It covers 29-54 / 108-174 / 216-512 / 806-956 MHz and features a Triple conversion superheterodyne receiver system with tuning steps of 5 / 6.25 / 12.5 / 25 kHz. It has an audio output of 1.8 W, 10 memory banks and 500 memory channels. The BC898T also features CTCSS/DCS, VFO mode, SAME w/FIPS, PC programmability, S-meter, rotary control, auto store, data skip, backlit display and Trunktracker III. Dimensions are 86 × 276 × 190 mm. It requires 13.8V DC and has a maximum current drain of 500 mA in receive mode.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ?
- Tuning steps
- 5 / 6.25 / 12.5 / 25 kHz
- Memories
- 500 channels in 10 bank(s) @ 100 channels/second
Receiver
- RX-range
- 29-54 / 108-174 / 216-512 / 806-956 MHz
- Modulations
- AM FM N-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Triple conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1.8 W
Connections
- Antenna
- BNC
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 500 mA max
- TX
- -
Physical
- Dimensions (w×h×d)
- 276 × 86 × 190 mm (10.87 × 3.39 × 7.48 in)
- Weight
- 1.70 kg (3.8 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2004 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS / DCS
VFO mode
SAME w/FIPS
PC programmable
S-meter
Rotary control
Auto store
Data skip
Backlit display
Trunktracker III, tracks Motorola (type I, II & hybrid), EDACS & LTR systems - Accessories
- -
- RigReference ID
- 2456
- MPN
- UNIDEN-BEARCAT-BC000898T
