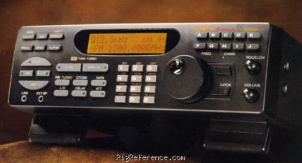

The Uniden-Bearcat BC9000XLT is a desktop base station scanner / receiver. It covers 25-550 / 760-1300 MHz and features a triple conversion superheterodyne receiver system. The radio has an audio output of 1.3 W, 20 memory banks and 500 memory channels. It weighs 1.82 kg and measures 85 × 267 × 190 mm. Features include auto-store, search lockout, attenuator, data skip, alpha-tagging, rotary control and tape recorder control. It operates on 13.8V DC or mains power.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 500 channels in 20 bank(s) @ 100 channels/second
Receiver
- RX-range
- 25-550 / 760-1300 MHz
- Modulations
- AM FM W-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Triple conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1.3 W
Connections
- Antenna
- BNC
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 267 × 85 × 190 mm (10.51 × 3.35 × 7.48 in)
- Weight
- 1.82 kg (4.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1995 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Auto-store
Search lockout
Attenuator
Data skip
Alpha-tagging
Rotary control
Tape recorder control - Accessories
- -
- RigReference ID
- 2457
- MPN
- UNIDEN-BEARCAT-BC009000XLT
Manuals, diagrams and brochures
- Bearcat UBC9000XLT (manual) (1) PDF - 11.12 MB, submitted by Gerd
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat BC9000XLT. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Uniden-Bearcat BC9000XLT is around:
- EUR 238.00
- USD 13.00
- AUD 20.00 ~ AUD 21.00
These estimates are based on the following prices:
