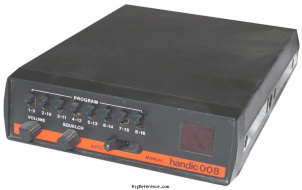

The Handic 008 is a Mobile VHF/UHF Scanner / receiver. It covers 68-88 / 148-174 / 380-430 MHz and features a Double conversion superheterodyne / XTAL receiver system with IF frequencies of 1st: 10.7 MHz, 2nd: 455 kHz. It has channelized tuning steps. The Handic 008 includes 1 memory bank with 16 channels. It requires 12-15 V DC and draws 8 W in receive mode. Dimensions are 38 × 132 × 183 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- Channelized
- Memories
- 16 channels in 1 bank(s)
Receiver
- RX-range
- 68-88 / 148-174 / 380-430 MHz
- Modulations
- FM
- Sensitivity
- 1 µV (no reference)
- Selectivity
- 18 kHz @ -6 dB, 34 kHz @ -50 dB
- Filters
- -
- Receiver system
- Double conversion superheterodyne / XTAL
- IF-frequencies
- 1st: 10.7 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- 2 W @ 8 ohms
Connections
- Antenna
- KOK1 (Motorola/DIN41585)
- Impedance
- 50/75Ω
- Other
- -
Electrical
- Power requirements
- 12-15 V DC
- Current drain RX
- 8 W
- TX
- -
Physical
- Dimensions (w×h×d)
- 132 × 38 × 183 mm (5.20 × 1.50 × 7.20 in)
- Weight
- 675 gr (1.5 lbs)
- Form factor
- Mobile
- Manufactured
- Between 198x and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2888
- MPN
- HANDIC-000008
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Handic 008. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
