SBE Sentinel VI

Mobile VHF Scanner / receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Add a review (+10 rep) Own this rig? Add it to your shack

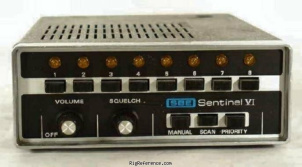

The SBE Sentinel VI is a mobile VHF scanner/receiver. It covers 144-171 / 450-470 MHz and has 8 crystal controlled channels. The radio features 1 memory bank with 8 memory channels. Audio output is through an internal speaker. The Sentinel VI requires 13.8 V DC or mains power. Dimensions are 57 × 152 × 191 mm and it weighs 1.8 kg.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: Fixed channels
Memories: 8 channels in 1 bank(s)

Receiver

RX-range: 144-171 / 450-470 MHz
Modulations: -
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: Internal speaker

Connections

Antenna: SO-239 + Built-in telescopic
Impedance: 50/75Ω
Other: -

Electrical

Power requirements: 13.8 V DC / Mains
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 152 × 57 × 191 mm (5.98 × 2.24 × 7.52 in)
Weight: 1.80 kg (4.0 lbs)
Form factor: Mobile
Manufactured: Between 1975 and 197x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: 8 crystal controlled channels
Accessories: -
RigReference ID: 5600
MPN: SBE-SENTINEL-VI
