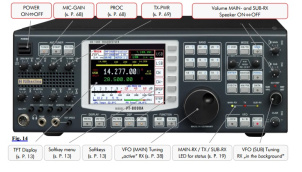

Hilberling PT-8000A
Desktop HF/VHF Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
IP3 (HF/6m) +39 dBm New price 2006 in Germany: EUR 8799.-
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 9 kHz - 52 MHz / 142-172 MHz
- Modulations
- AM AM-sync FM W-FM CW USB LSB
- Sensitivity
- AM
2 µV (1.8-54 MHz)
1.5 µV (142-172 MHz)
33 µV (9 kHz - 1.8 MHz)
FM
4 µV (1.8-54 MHz)
0.2 µV (142-172 MHz)
28 µV (9 kHz - 1.8 MHz)
SSB/CW
0.2 µV (1.8-54 MHz)
0.18 µV (142-172 MHz)
22 µV (9 kHz - 1.8 MHz) - Selectivity
- AM 6 kHz
FM 12 kHz
SSB 2.4 kHz
CW 600 Hz - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 70.7 MHz
2nd: 10.698 (main), 10.702 (sub) - Image rejection
- > 70 dB
- Audio output
- 4.8 W (2×2.4 W main/sub)
Transmitter
- TX-range
- 10-160 m + WARC / 6 m / 2 m
- Modulations
- AM FM CW USB LSB
- RF-output
- HF/6 m: 100 W, 2 m: 10 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 425 × 175 × 465 mm (16.73 × 6.89 × 18.31 in) Width: 543 mm with rack handles
- Weight
- 25.00 kg (55.2 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2006 and 200x in Germany
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2953
- MPN
- HILBERLING-PT-008000A
Manuals, diagrams and brochures
- Hilberling PT-8000A Block Diagram PDF - 216.5 kB, submitted by RigReference
- Hilberling Pricelist 2018 PDF - 286.1 kB, submitted by RigReference
- Hilberling PT-8000A Folder (EN/DE) PDF - 2.06 MB, submitted by RigReference
- Hilberling PT-8000A Operating Manual PDF - 9.81 MB, submitted by RigReference
- Upload relevant documents
Reviews
Be the first to review the Hilberling PT-8000A
No reviews yet. Share your experience and earn +10 reputation.
Write the first reviewNew and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hilberling PT-8000A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Hilberling PT-8000A in Good condition is around:
- EUR 9,992
These estimates are based on the following prices:
