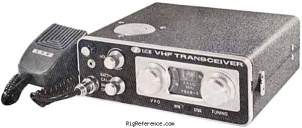

The ICOM FDAM-3 is a VHF transceiver. It covers the 6 meter band for both transmit and receive. The receiver system uses double conversion superheterodyne with IF frequencies of 1st: 2 MHz and 2nd: 455 kHz. RF output is 1W. It features 1 memory bank with 1 channel. Power requirements are 13.8V DC.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ?
- Tuning steps
- Continuous / 1 preset channel
- Memories
- 1 channels in 1 bank(s)
Receiver
- RX-range
- 6 m
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 2 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 6 m
- Modulations
- AM FM
- RF-output
- 1 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Unknown
- Manufactured
- Between 1969 and 197x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2959
- MPN
- ICOM-FDAM-000003
Manuals, diagrams and brochures
- Icom FDAM-3 Schematic JPEG - 446.9 kB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM FDAM-3. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ICOM FDAM-3 is around:
- USD 125 ~ USD 233
This estimate is based on similar equipment and may not reflect the exact value of this model.
