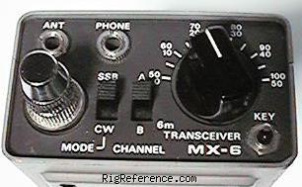

The Mizuho MX-6 is a VHF transceiver. It covers the 6 meter band with 50 KHz per crystal for both receive and transmit. The RF output is 250 mW and requires 9.5V DC power. Its dimensions are 142 × 66 × 39 mm.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 6 m (50 KHz per XTAL)
- Modulations
- CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- VXO. Max 2 XTALS
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 6 m (50 KHz per XTAL)
- Modulations
- CW SSB
- RF-output
- 250 mW
Connections
- Antenna
- Built-in sweep
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 9.5V DC
- Current drain RX
- 40 mA
- TX
- Max 180 mA
Physical
- Dimensions (w×h×d)
- 66 × 142 × 39 mm (2.60 × 5.59 × 1.54 in)
- Weight
- 645 gr (1.4 lbs) batteries included
- Form factor
- Unknown
- Manufactured
- Between 1981 and 1983 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3597
- MPN
- MIZUHO-MX-000006
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Mizuho MX-6. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Mizuho MX-6 is around:
- USD 224 ~ USD 415
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
