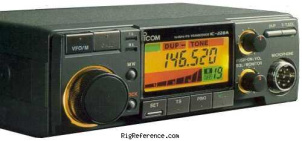

ICOM IC-228E

Mobile VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The ICOM IC-228E is a Mobile VHF Transceiver. It covers 138-174 MHz for receive and 144-146 MHz for transmit. The RF output is High: 25 W, Low: 5 W. It features 1 memory bank with 20 memory channels. Power requirements are 13.8V DC. Current drain is 800 mA max in receive and 6 A max in transmit. Dimensions are 50 × 140 × 137 mm. The IC-228E was manufactured in Japan from 1988 to 1990.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 20 channels in 1 bank(s)

Receiver

RX-range: 138-174 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: FM
RF-output: High: 25 W, Low: 5 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 800 mA max
TX: 6 A max

Physical

Dimensions (w×h×d): 140 × 50 × 137 mm (5.51 × 1.97 × 5.39 in)
Weight: 850 gr (1.9 lbs)
Form factor: Mobile
Manufactured: Between 1988 and 1990 in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2993
MPN: ICOM-IC-000228E
