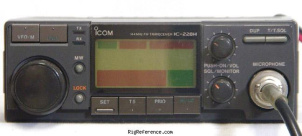

ICOM IC-228H

Mobile VHF Transceiver

Specs Manuals (2) Reviews (0) Prices (0) Compare

Find ICOM IC-228H rigs and spare parts on eBay

The ICOM IC-228H is a Mobile VHF Transceiver. It covers 138-174 MHz for reception and transmits on 144-146 MHz (Europe) or 144-148 MHz (USA). The RF output is selectable between High: 45 W and Low: 5 W. It features 1 memory bank with 20 channels. It requires 13.8V DC power. The current drain is Max 800 mA while receiving and Max 9.5 A while transmitting. Dimensions are 50 × 140 × 159 mm.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 20 channels in 1 bank(s)

Receiver

RX-range: 138-174 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz (Europe)
144-148 MHz (USA)
Modulations: FM
RF-output: High: 45 W, Low: 5 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 800 mA
TX: Max 9.5 A

Physical

Dimensions (w×h×d): 140 × 50 × 159 mm (5.51 × 1.97 × 6.26 in)
Weight: 1.10 kg (2.4 lbs)
Form factor: Mobile
Manufactured: Between 1988 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2994
MPN: ICOM-IC-000228H

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: ICOM .IC-228A E H.service.manual PDF - 17.92 MB, submitted by Robert Dixon
: Ic-228A E H User Operational Manual PDF - 3.49 MB, submitted by Robert Dixon
