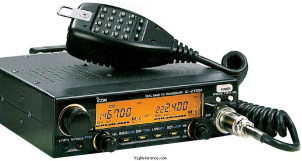

ICOM IC-2330A

Mobile VHF Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

The ICOM IC-2330A is a mobile VHF transceiver. It covers 136-174 / 222-225 MHz for RX and 144-148 / 222-225 MHz for TX. RF output is High: 45/25 W, Medium: 10/10 W, Low: 5/5 W. It requires 13.8V DC power. Current drain is Max 1.2 A (RX) and Max 10.5 A (TX). Dimensions are 40 × 140 × 165 mm. It features Twin RX.

General characteristics

HAM bands: 2m 1.25m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 136-174 / 222-225 MHz
Modulations: FM
Sensitivity: Less than 0.16 µV for 12 dB SINAD
Selectivity: More than 15 kHz/-6 dB
Less than 30 kHz/-60 dB
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-148 / 222-225 MHz
Modulations: FM
RF-output: High: 45/25 W, Medium: 10/10 W, Low: 5/5 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 1.2 A
TX: Max 10.5 A

Physical

Dimensions (w×h×d): 140 × 40 × 165 mm (5.51 × 1.57 × 6.50 in)
Weight: 1.25 kg (2.8 lbs)
Form factor: Mobile
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: Twin RX
Accessories: -
RigReference ID: 3002
MPN: ICOM-IC-002330A

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: ICOM IC-2330A Instruction Manual.pdf PDF - Unknown size, submitted by RigReference
